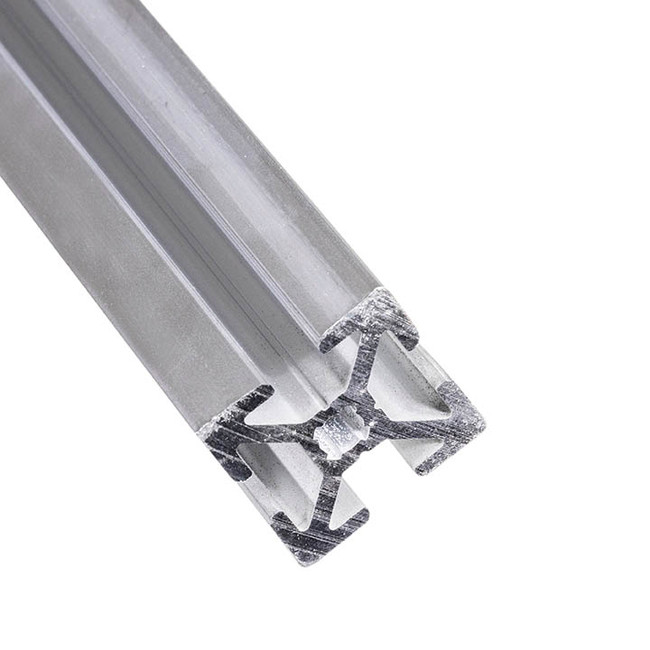

T-Slot (Quad Track): 25mm Width x 25mm Height - 6mm Slot - 6063-T5 Aluminum

T-Slot (Quad Track): 25mm Width x 25mm Height - 6mm Slot - 6063-T5 Aluminum Product Information

The T-Slot Quad Track is a heavy-duty aluminum profile engineered for modular framing systems in industrial, commercial, and custom fabrication environments. With four integrated t-slots, it offers unmatched flexibility for building robust structures, workstations, enclosures, and equipment frames. Its clean design and strong, corrosion-resistant construction make it a top choice for builders seeking precision and adaptability.

Highlights

• Multi-Slot Functionality – Four t-slots allow for multi-directional attachments and cross-structure integration
• Strong & Lightweight – Made from high-performance aluminum for load-bearing builds
• Modular Compatibility – Designed to pair seamlessly with a wide range of system accessories
• Easy to Assemble – Can be cut, drilled, and connected with standard t-slot hardware
• Versatile Applications – Ideal for machinery frames, custom workstations, robotics, and enclosures

Pair with essential components for a complete system: 2D and 3D Connector Cubes, Connector Angles, Hinges, T-Slot Caps, and Uniblocks — all available in our T-Slot Accessories collection.

Need custom sizes or extrusions? Check out our customization services.

• Width:25MM
• Height:25MM
• Slot:6MM
• Country of Origin:United States of America
• Alloy/Temper:6063-T5
• Met:ASTM B221-20
• Yield Strength:16k PSI-5
• RoHS:RoHS 3 (2015/865/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2021, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.3%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
