File Hanging Rail - Flat Bar: 1/2" Width x 1/8" Height x 1/8" Thickness - 6063-T5 Aluminum

File Hanging Rail - Flat Bar: 1/2" Width x 1/8" Height x 1/8" Thickness - 6063-T5 Aluminum Product Information

Aluminum File Hanging Rail Flat Bar supports Pendaflex-style hanging folders inside drawer systems. It acts as the resting rail for file tabs, providing a smooth, stable track for easy access and organization. Commonly used in office furniture, custom cabinetry, and storage units.

Highlights

• Supports Hanging Files – Holds file tabs in place for smooth sliding and access.
• Flat Bar Design – Installs along drawer sides or frame edges for clean alignment.
• Smooth File Movement – Helps prevent snagging or tipping during use.
• Used in Cabinet and Office Systems – Fits filing drawers, desks, and custom storage setups.
• Easy to Cut and Fit – Can be cut and fit to match drawer dimensions, custom configurations, or cabinet layouts.

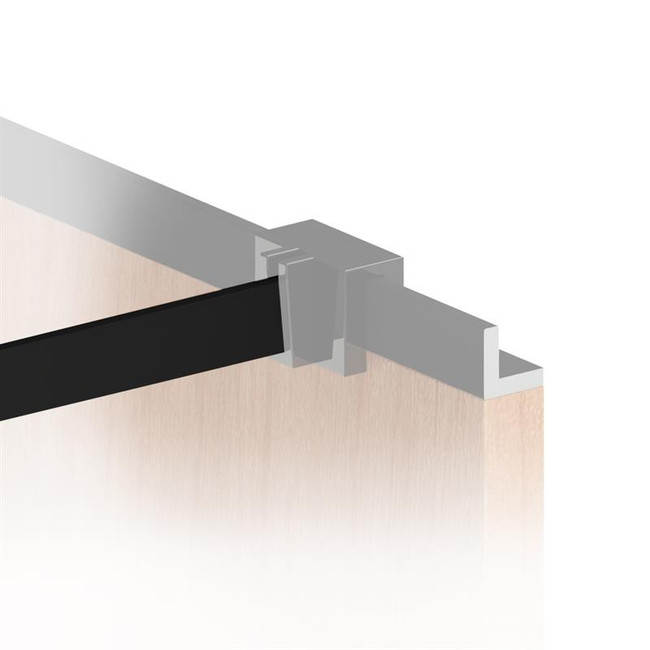

Combine with matching parts to build a full file system:

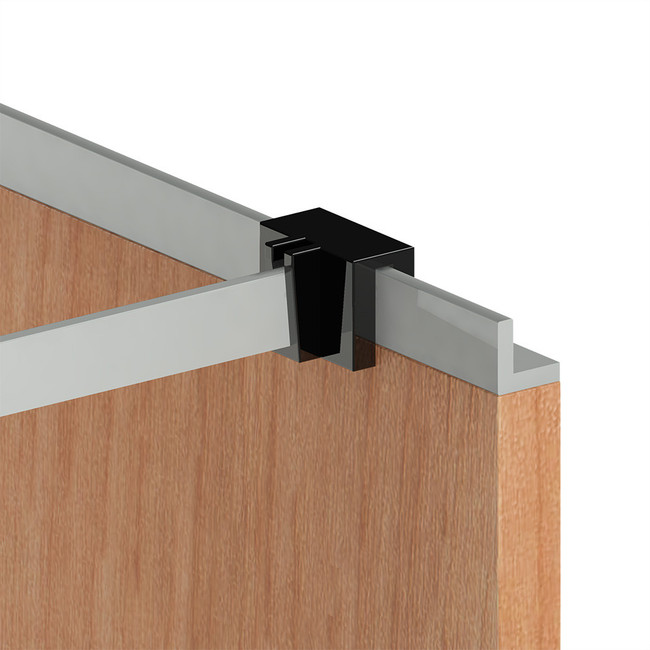

• File Hanging Clip (FRC): Clips onto Angle or Rail Cap to hold the flat bar securely.

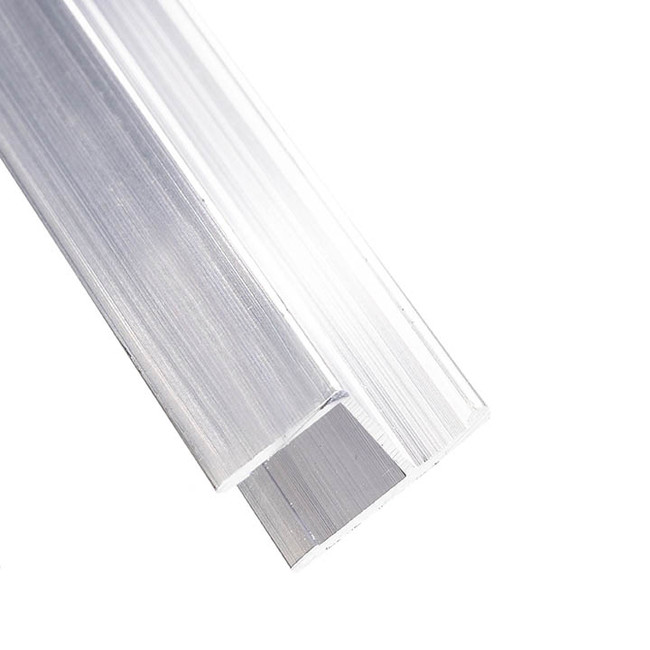

• Press File Rail Cap (FRPF63): Alternative mounting option providing clean installation and support.
• File Rail Mount Angle (FRA630500125): Alternate mounting method secured to drawer sidewall

Need custom sizes or extrusions? Check out our customization services.

• Wall Thickness:1/8"
• Width:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
