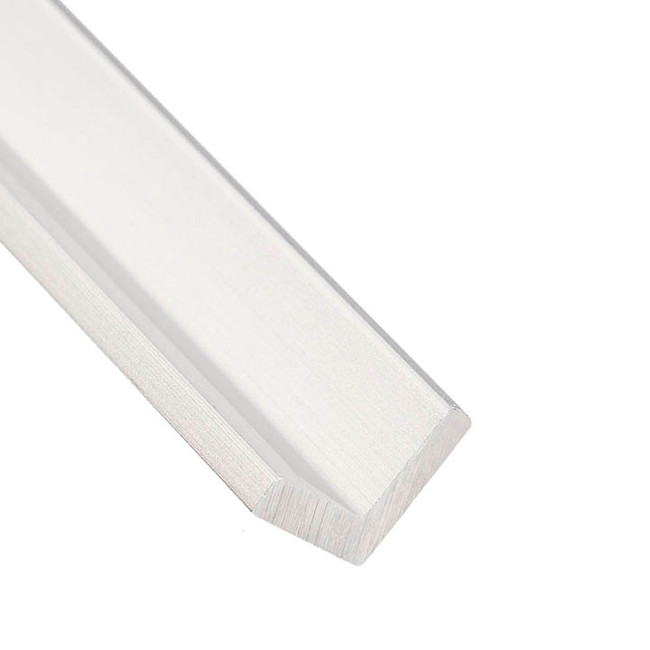

Aluminum File Hanging Rail Mount Angle – 6063-T5

Sku:

FRA630500125-72CA

SKU:: FRA630500125-72CA
UPC:
Width:: 1/2"
Height:: 1/2"
Thickness:: 1/8"
Alloy & Temper:: 6063-T5
Specification Met:: ASTM B221-14
Country of Origin:: USA
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
_finish:: Mill Finish,Clear Anodized,Black Anodized
_industry:: Wall Panel Systems & Modular Interiors

Cut Length: Required 72" 96" 144"

Finish: Required

Current Stock:

Volume Discount

1 - 58 $24.07
59 - 117 $ 22.87
118 - 176 $ 21.18
177 - 235 $ 20.46
236 - 294 $ 19.74
295 + Contact Us

15 Day Price Guarantee

Volume Discount

15 Day Price Guarantee

Qty:

Price/Piece:

$24.07

Aluminum File Hanging Rail Mount Angle – 6063-T5 Product Information

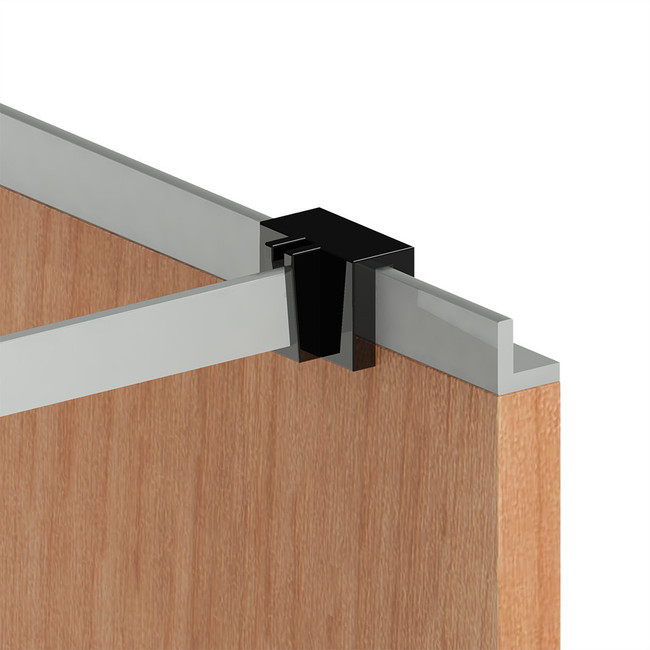

File Rail Mount Angle is used to support suspended file systems by mounting directly to the interior side walls of drawers or cabinets. It acts as a structural base for attaching file rails and clips, ensuring smooth operation and proper alignment. Commonly used in office furniture, custom cabinetry, and commercial storage units.

Highlights

Side Wall Mount – Installs along interior cabinet or drawer walls to support file systems.
Supports Hanging Rails – Provides a mounting surface for clips and flat bars.
Keeps Files Aligned – Helps maintain level placement for smooth folder movement.
Low-Profile Fit – Sits flush inside drawer systems for minimal visual impact.
Used in Office and Storage Builds – Fits desks, filing cabinets, and custom casework.

Combine with matching parts to build a full file system:

File Hanging Clips (FRC): Hold the flat bar securely, enabling smooth file movement.
Press File Rail Cap (FRPF63): Alternative mounting option (to this angle) providing clean drill free installation.
File Hanging Rail Flat Bar (FRFB6301250500 or FRFB6301250750): Used as Cross-Section in which the Files Rest Atop within a Drawers Structure.

Need custom sizes or extrusions? Check out our customization services.
