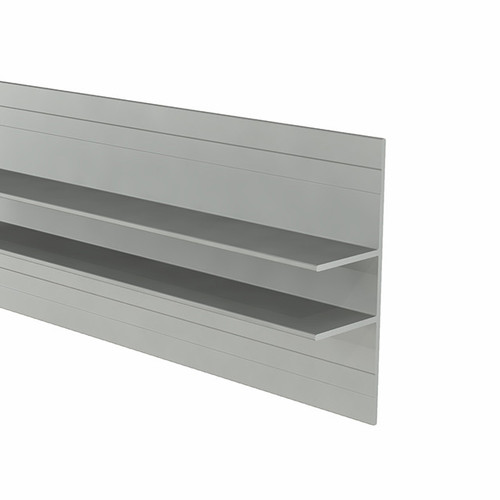

Aluminum Millwork Divider Reveal Trim – 3/4” Panel – 6063-T5

Aluminum Millwork Divider Reveal Trim – 3/4” Panel – 6063-T5 Product Information

Our Millwork Divider Reveal Trim is used to create clean, intentional breaks between adjacent panels. It helps establish uniform spacing and crisp architectural shadow lines in wall panel systems, feature walls, and commercial interiors.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

• Defines panel separations with clean, modern reveal lines
• Supports consistent spacing across large wall panel layouts
• Precision extruded aluminum for repeatable alignment
• Ideal for specification-grade commercial millwork

Common Applications

• Vertical and horizontal panel reveals in wall systems
• Feature walls and decorative millwork layouts
• Office, hospitality, retail, and institutional interiors

Technical Specifications

• Width:2-3/8"
• Height:13/16"
• Wall Thickness:1/16"
• Panel:3/4"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
