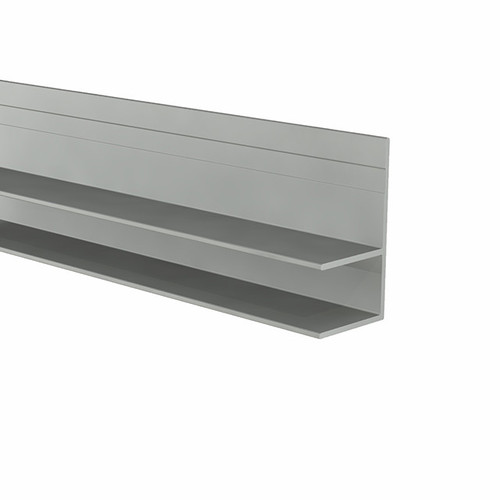

Aluminum Millwork F Reveal Trim – 3/4” Panel – 1/2” Reveal – 6063-T5

Aluminum Millwork F Reveal Trim – 3/4” Panel – 1/2” Reveal – 6063-T5 Product Information

Our Millwork F Reveal Trim (F-Bar) is designed to create recessed reveal conditions and crisp shadow lines within panel systems. This profile adds depth and articulation to architectural millwork, feature walls, and decorative interiors.

Panel Fit & Finishes: Available for 3/4" and 1" panel systems. Offered in Mill Finish or Clear Anodized.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

• Creates recessed shadow lines for modern panel layouts
• Adds depth and definition to architectural reveal details
• Precision extruded aluminum for repeatable fit and alignment
• Ideal for specification-grade commercial millwork projects

• Decorative wall panel reveals and feature walls
• Cabinetry and built-ins requiring modern trim detailing
• Hospitality, retail, office, and institutional interiors

We ship architectural millwork trims nationwide across the United States for fast delivery to your shop or jobsite. Keywords: F reveal trim, F-bar millwork, aluminum reveal extrusion, panel shadow line trim.

Technical Specifications

• Width:13/16"
• Height:1-1/2"
• Wall Thickness:1/16"
• Panel:3/4"
• Reveal:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
