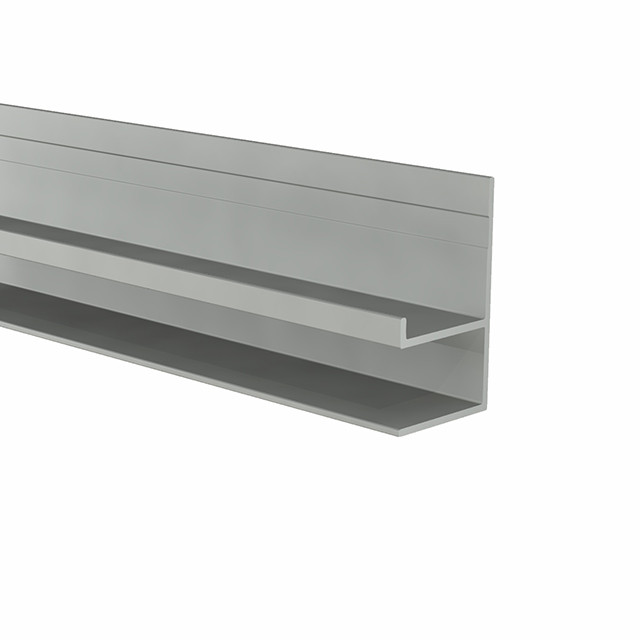

Aluminum Millwork Flanged F Reveal Trim – 3/4” Panel – 1/2” Reveal – 6063-T5

Aluminum Millwork Flanged F Reveal Trim – 3/4” Panel – 1/2” Reveal – 6063-T5 Product Information

Our Millwork Flanged F Reveal Trim (F-Bar) provides recessed reveal detailing with an integrated flange for added mounting support. Use it to create consistent shadow lines and refined panel transitions in architectural wall systems and commercial millwork.

Panel Fit & Finishes: Available for 3/4" and 1" panel systems. Offered in Mill Finish or Clear Anodized.

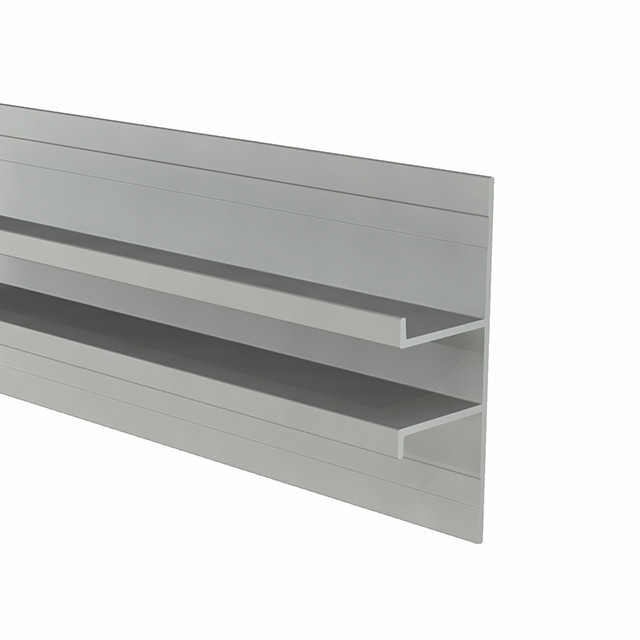

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

• Recessed reveal profile with flange for added installation support
• Creates consistent shadow lines and crisp panel transitions
• Precision extruded aluminum for repeatable alignment
• Well-suited for large commercial wall panel applications

• Architectural reveal systems in wall panels and feature walls
• Commercial interiors requiring consistent panel alignment
• Retail, hospitality, office, and institutional environments

We ship architectural millwork trims nationwide across the United States for fast delivery to your shop or jobsite. Keywords: flanged F reveal trim, F-bar trim, aluminum reveal profile, architectural millwork trim.

Technical Specifications

• Width:7/8"
• Height:1-1/2"
• Wall Thickness:1/16"
• Panel:3/4"
• Reveal:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
