Aluminum Z Bar 3/4" x 1" x 1/8" – 6061-T6

Aluminum Z Bar 3/4" x 1" x 1/8" – 6061-T6 Product Information

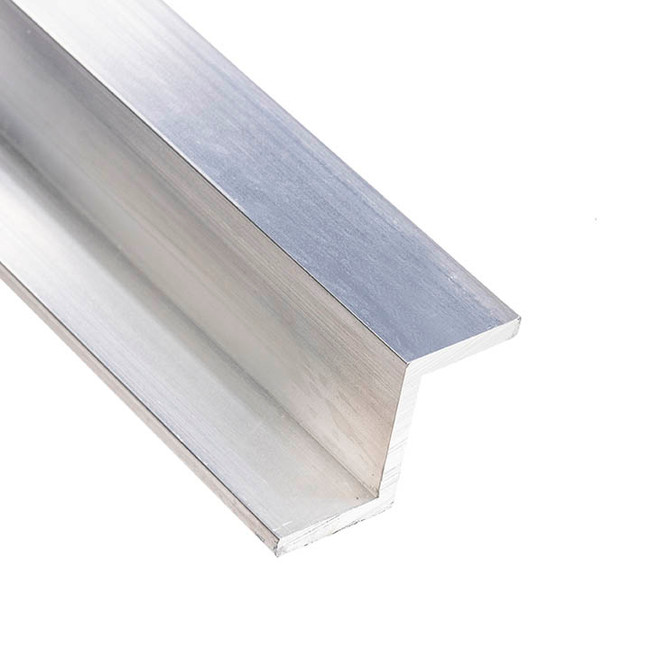

Aluminum Z Bar is a precision-extruded Z-shaped profile designed for structural support, panel transitions, and offset framing applications. Its stepped geometry allows one surface to mount securely while providing clearance or offset for an adjoining surface.

Manufactured from high-strength 6061-T6 aluminum, Z bars offer excellent durability, machinability, and corrosion resistance. This makes them suitable for structural builds, architectural systems, cladding support, equipment framing, trailers, and marine applications.

Common Applications

• Panel support and backing systems
• Offset mounting brackets
• Cladding and facade systems
• Trailer and transport structures
• Equipment framing and reinforcement

Technical Specifications

• Leg:3/4"
• Height:1"
• Wall Thickness:1/8"
• Alloy & Temper:6061-T6
• Country of Origin:United States of America
• Specification Met:ASTM B221-14
• RoHS:RoHS 3 (2015/863/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.85%
Chromium 0.04-0.35%
Copper 0.15-0.4%
Iron 0-0.7%
Magnesium 0.8-1.2%
Manganese 0-0.15%
Nickel 0-0.5%
Silicon 0.4-0.6%
Titanium 0-0.15%
Zinc 0-0.25%
Zirconium 0-0.25%
Other 0.15%
