Slatwall - Interlocking System - Finishing Angle: 11/16" Width x 11/16" Height x 1/16" Thickness - Fits 5/8" - 6063-T5 Aluminum

Slatwall - Interlocking System - Finishing Angle: 11/16" Width x 11/16" Height x 1/16" Thickness - Fits 5/8" - 6063-T5 Aluminum Product Information

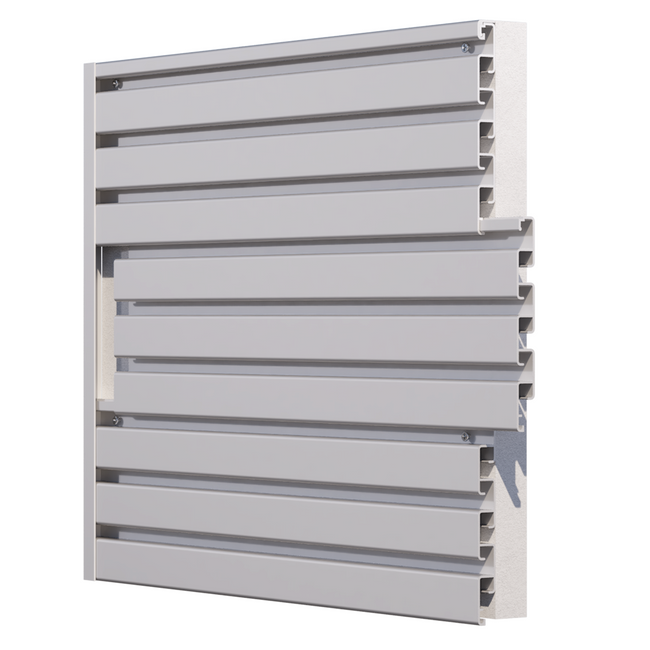

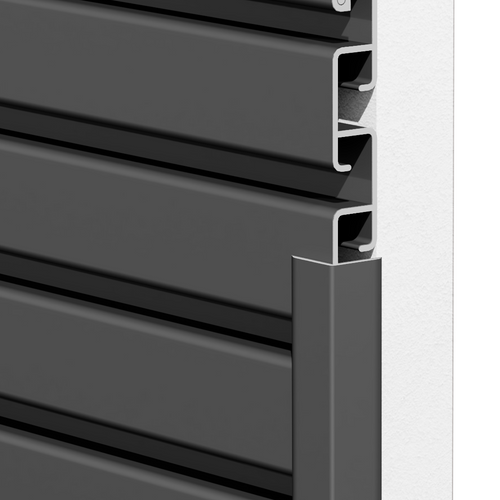

Interlocking Slatwall Finishing Angle is a trim solution to wrap exposed edges of interlocking slatwall installations (SKU# ISW63). Ideal for display systems, walls, and functional shop fits, this finishing angle delivers a polished reveal without bulky hardware. Mount it using adhesive, VHB tape, or traditional mechanical fasteners.

Highlights

• Edge Protection – Covers raw slatwall ends for a finished, safe corner detail.
• Easy Installation – Compatible with adhesives, VHB tape, or visible fasteners
• Durable Aluminum Finish – Comes in clear anodized or powder coated finishes for corrosion resistance.
• Profile-Aligned Fit – Matches the face of interlocking slatwall panels for consistent appearance and alignment.
• Versatile Fit – Used in retail, architecture, RVs, and specialty vehicles.

Need custom sizes or extrusions? Check out our customization services.

• Width:5/8"
• Height:5/8"
• Thickness:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
