Slatwall - Interlocking System - Interlocking Slatwall Panel: 1/2" Width x 5-7/32" Height x 1/16" Thickness - Fits 3/8" - 6063-T5 Aluminum

Slatwall - Interlocking System - Interlocking Slatwall Panel: 1/2" Width x 5-7/32" Height x 1/16" Thickness - Fits 3/8" - 6063-T5 Aluminum Product Information

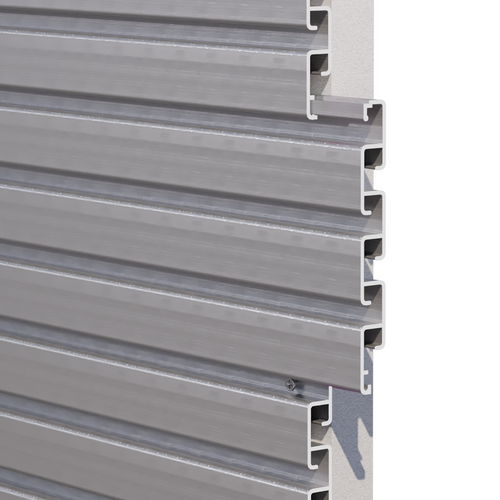

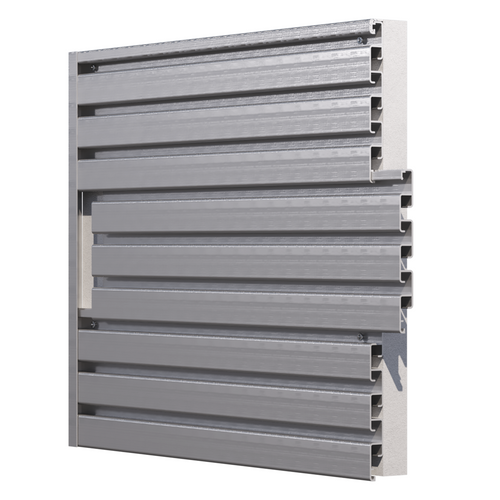

The Interlocking Slatwall Panel offers a sleek, modular solution for display systems, wall organization, and workspace efficiency. Designed with a self-mating edge, these aluminum slatwall strips stack cleanly and securely, allowing you to build as high as needed for your retail, office, or custom millwork projects. The raw mill finish provides flexibility for painting or finishing to match your design.

Highlights

• Stackable, Seamless Fit – Interlocking design allows multiple panels to connect without visible breaks.
• Customizable Surface – Comes in a mill finish, giving you the option to paint or finish as needed.
• Sleek and Functional – Built-in spacing ensures consistent alignment for clean, professional displays.
• Durable Aluminum Build – Made from high-quality aluminum that holds up to wear and daily use.
• Ideal for Vertical Projects – Perfect for wall systems in retail, offices, or custom cabinetry installations.

Need custom sizes or extrusions? Check out our customization services.

• Width:1/2"
• Height:5-7/32"
• Wall Thickness:1/16"
• Fit:3/8"
• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
