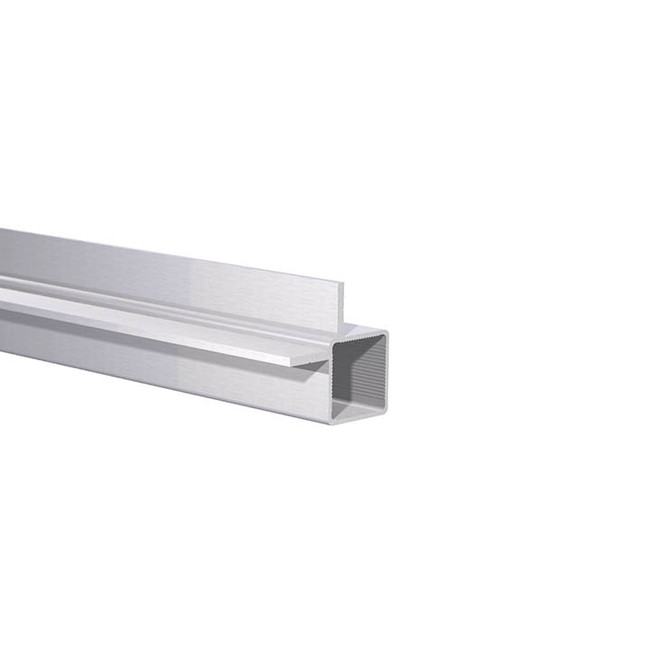

Press Fit Tube - Dual Flange (Corner Notch): 1-5/8" Width x 1-5/8" Height x 1/16" Thickness - 1" Tube Fit - 3/4" Panel - 5/8" Leg - 6063-T5 Aluminum

Press Fit Tube - Dual Flange (Corner Notch): 1-5/8" Width x 1-5/8" Height x 1/16" Thickness - 1" Tube Fit - 3/4" Panel - 5/8" Leg - 6063-T5 Aluminum Product Information

Press Fit Tubes provide a flexible, no-weld solution for structural builds, modular framing, and precision mounting. These aluminum extrusions are designed for secure press-fit connections, offering strength and adaptability without adhesives or hardware. Available in a range of profiles with options that include internal slots, external flanges, or smooth walls, they can be tailored to suit a variety of installation and support needs. A full line of compatible accessories is available to expand functionality and simplify assembly.

Highlights

• Tool-Free Connection – Joins components securely using friction fit, simplifying assembly and reducing labor.
• Multiple Profile Variations – Offered with or without slots and flanges to match specific project requirements.
• Accessory Compatibility – Works seamlessly with end caps, brackets, connectors, and other modular add-ons.
• Durable Aluminum Construction – Provides strength, corrosion resistance, and long-term stability.
• Used in Modular Systems – Ideal for adjustable frames, structural supports, and industrial fixtures.

Need custom sizes or extrusions? Check out our customization services.

• Width:1-5/8"
• Height:1-5/8"
• Wall Thickness:1/16"
• Panel Fit:3/4"
• Leg:5/8"
• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-20
• RoHS:RoHS 3 (2015/863/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.85%
Chromium 0.04-0.35%
Copper 0.15-0.4%
Iron 0-0.7%
Magnesium 0.8-1.2%
Manganese 0-0.15%
Nickel 0-0.5%
Silicon 0.4-0.6%
Titanium 0-0.15%
Zinc 0-0.25%
Zirconium 0-0.25%
Other 0.15%
