Slide Track - Locking - Deep Header: 1-3/16" Width x 13/16" Height x 1/16" Thickness - Fits 7/16" - 6063-T5 Aluminum

Slide Track - Locking - Deep Header: 1-3/16" Width x 13/16" Height x 1/16" Thickness - Fits 7/16" - 6063-T5 Aluminum Product Information

Deep Header is the top track used in the Locking Slide Track system when extra space is needed for panel clearance or lock components. It holds the roller assembly and pairs with the anti-rattle insert for smooth, stable door movement.

Highlights

• Top Track for Sliding Doors – Guides door panels and holds rollers in place.
• Deeper Channel Profile – Provides extra space for panel clearance or accessories.
• Compatible with Locking Hardware – Works with plunger locks and anti-rattle inserts.
• Part of Locking Slide Track System – Fits with matching shoes, rollers, and base tracks.
• Used in Cabinets and Display Cases – Common in sliding glass or panel door setups.

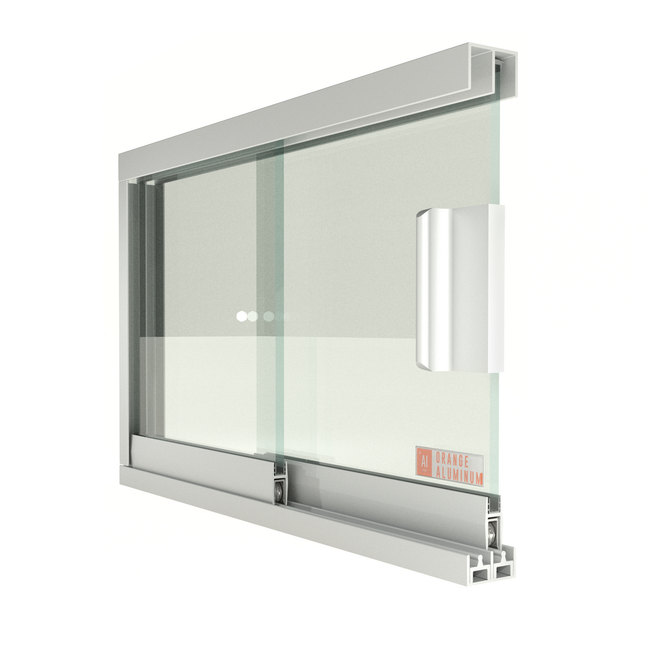

Complete your showcase project with our premium locking slide track system for 1/4" Glass:

• Locking Slide Track Shoe SKU# LSTS63
• Locking Slide Track Steel Ball Bearing Roller SKU# LSTBBR
• Locking Slide Track Plunger Lock & Security Clip Set SKU# LSTPL
• Locking Slide Track End Cap SKU# LSTEC
• Locking Slide Track Finger Pull End Cap SKU# LSTFPC
• Locking Slide Track Vinyl Shoe Insert SKU# LSTVSI
• Locking Slide Track Security Base SKU# LSTSB63
• Locking Slide Track Deep Security Base SKU# LSTDSB63
• Locking Slide Track Deep Header SKU# LSTDH63
• Locking Slide Track Deep Header Insert SKU# LSTDHI
• Slide Track Vertical Jamb SKU# STVJ63

Need custom sizes or extrusions? Check out our customization services.

• Width:1-3/16"
• Height:13/16"
• Wall Thickness:1/16"
• Fits:7/16"
• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
