Aluminum Millwork F Reveal Trim – 1” Panel – 1/2” Reveal – 6063-T5

Aluminum Millwork F Reveal Trim – 1” Panel – 1/2” Reveal – 6063-T5 Product Information

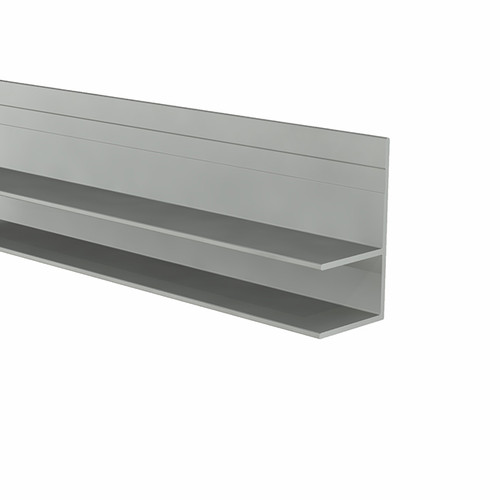

Our Millwork F Reveal Trim (F-Bar) is designed to create recessed reveal conditions and crisp shadow lines within panel systems. This profile adds depth and articulation to architectural millwork, feature walls, and decorative interiors.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

• Creates recessed shadow lines for modern panel layouts
• Adds depth and definition to architectural reveal details
• Precision extruded aluminum for repeatable fit and alignment
• Ideal for specification-grade commercial millwork projects

Common Applications

• Decorative wall panel reveals and feature walls
• Cabinetry and built-ins requiring modern trim detailing
• Hospitality, retail, office, and institutional interiors

Technical Specifications

• Width:1-1/16"
• Height:1-1/2"
• Wall Thickness:1/16"
• Panel:1"
• Reveal:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
