Overlap Edge Trim: 3/8" Width x 15/16" Height x 1/16" Thickness - Covers 3/4" - 3/8" Reveal - 15/16" Radius - 6063-T5 Aluminum

Overlap Edge Trim: 3/8" Width x 15/16" Height x 1/16" Thickness - Covers 3/4" - 3/8" Reveal - 15/16" Radius - 6063-T5 Aluminum Product Information

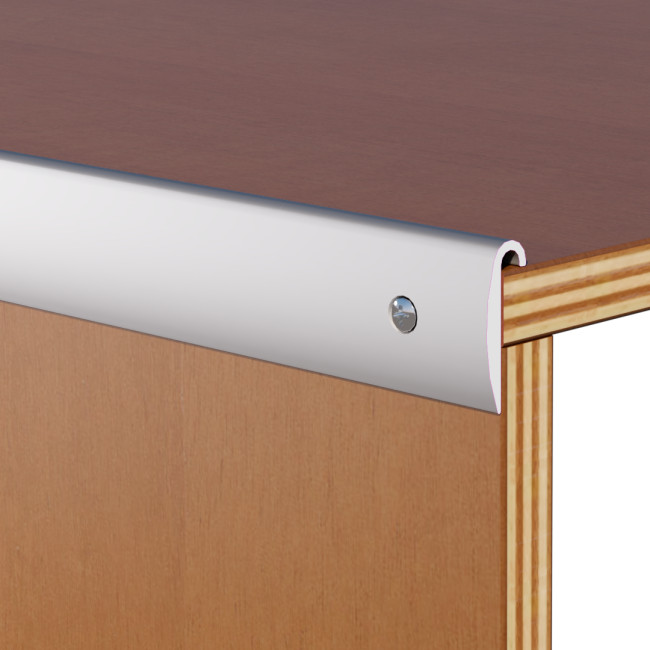

Overlap Edge Trim is designed to extend across adjoining surfaces, covering seams and protecting exposed panel edges. Its broad face profile offers both structural reinforcement and a finished appearance. Commonly used in cabinetry, panel systems, and fixture fabrication.

Highlights

• Seam Coverage – Spans across two surfaces to conceal gaps and raw edges.
• Edge Reinforcement – Adds stability and surface protection in high-contact areas.
• Pre-Punched for Fastening – Comes with countersunk holes 6" on center for #8 oval head screws.
• Clean, Continuous Finish – Creates a smooth, unified edge profile across panels.
• Used in Millwork and Displays – Ideal for cabinets, wall panels, and commercial fixtures.

Need custom sizes or extrusions? Check out our customization services.

• Width:3/8"
• Height:15/16"
• Wall Thickness:1/16"
• Covers:3/4''
• Reveal:3/8"
• Radius:15/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
