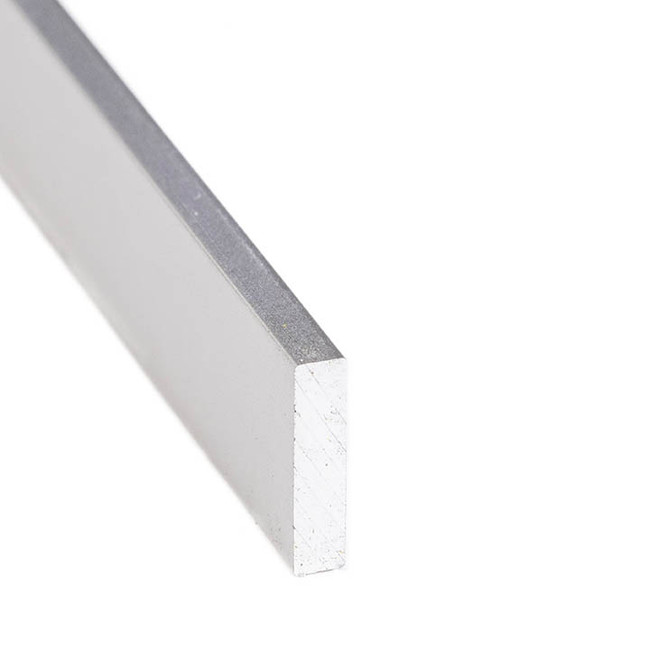

Flat Bar Edge Trim: 1/2" Width x 1/8" Height x 1/8" Wall Thickness - Covers 1/2" - 6063-T5 Aluminum

Flat Bar Edge Trim: 1/2" Width x 1/8" Height x 1/8" Wall Thickness - Covers 1/2" - 6063-T5 Aluminum Product Information

The Edge Trim Flat Bar is a clean-lined aluminum profile designed to protect and finish the exposed edges of panels, enclosures, and surfaces. Its flat shape makes it ideal for use in casework, cabinetry, fixtures, and architectural trims where a slim, low-profile solution is needed. Made from corrosion-resistant aluminum, it provides long-lasting durability and a refined look in both commercial and residential environments.

Highlights

• Edge Protection – Shields exposed edges from wear, impact, and visual damage
• Low-Profile Finish – Flat design offers a sleek, minimal aesthetic
• Durable Construction – Made from corrosion-resistant aluminum for indoor and outdoor use
• Easy to Customize – Can be cut, drilled, or fastened to match project needs
• Used Across Applications – Common in cabinetry, display cases, wall panels, and architectural millwork

Need custom sizes or extrusions? Check out our customization services.

• Width:1/2"
• Height:1/8"
• Wall Thickness:1/8"
• Covers:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
