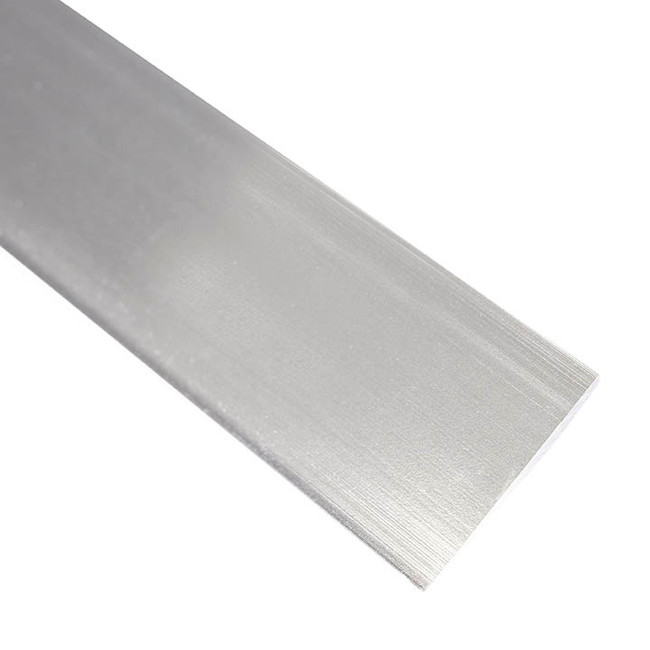

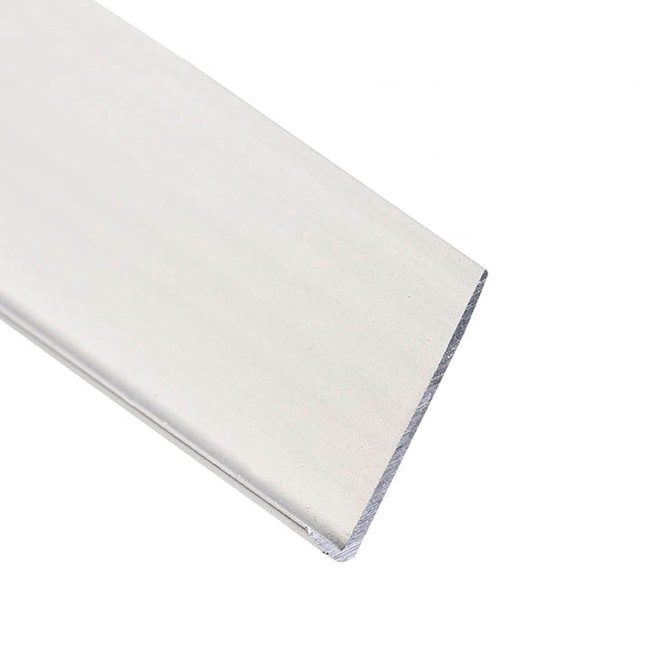

Overhang Edge Trim (Smooth): 1/4" Width x 1-5/16" Height x 1/16" Thickness - Covers 1-1/4" - 1/4" Reveal - 6063-T5 Aluminum

Overhang Edge Trim (Smooth): 1/4" Width x 1-5/16" Height x 1/16" Thickness - Covers 1-1/4" - 1/4" Reveal - 6063-T5 Aluminum Product Information

Overhang Edge Trim is an aluminum profile designed to extend slightly beyond panel edges, offering a clean break line and light protection. It adds definition to cabinetry, displays, and wall paneling while concealing exposed edges for a polished finish. Common in retail fixtures, commercial interiors, and custom millwork.

Highlights

• Extended Edge Coverage – Projects beyond the panel face to define and protect edges.
• Visual Break Line – Creates a subtle reveal between surfaces for architectural contrast.
• Pre-Punched for Fastening – Includes countersunk holes 6" on center for #5 oval head screws.
• Clean, Finished Appearance – Hides raw edges and enhances visual continuity.
• Used in Retail and Interior Builds – Ideal for casework, displays, and decorative trims.

Need custom sizes or extrusions? Check out our customization services.

• Width:1/4"
• Height:1-5/6"
• Wall Thickness:1/16"
• Fits:1-1/4"
• Reveal:1/4"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%"_finish=Clear
