Aluminum Millwork Flanged Divider Reveal Trim – 1” Panel – 6063-T5

Aluminum Millwork Flanged Divider Reveal Trim – 1” Panel – 6063-T5 Product Information

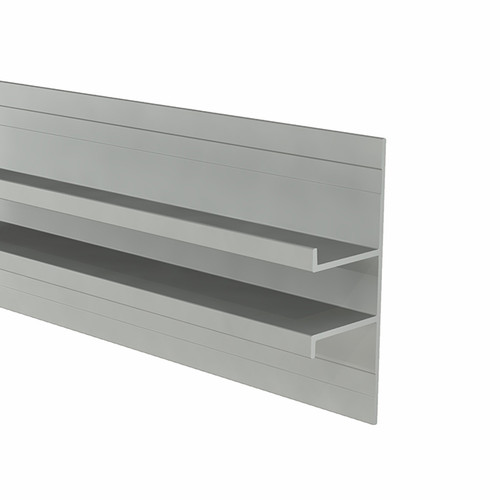

Our Millwork Flanged Divider Reveal Trim adds an integrated flange to support secure installation while maintaining clean reveal detailing between panels. This profile is ideal when you want consistent panel breaks and additional mounting support in architectural wall systems and commercial millwork.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

• Creates clean panel separations with added installation support
• Flanged design helps improve alignment and fastening options
• Precision extruded aluminum for consistent reveal spacing
• Well-suited for larger commercial panel layouts

Common Applications

• Panel reveal breaks in wall systems and feature walls
• Commercial interiors requiring repeatable alignment
• Retail, hospitality, office, and institutional environments

Technical Specifications

• Width:2-3/8"
• Height:1-3/32"
• Wall Thickness:1/16"
• Panel:1"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
