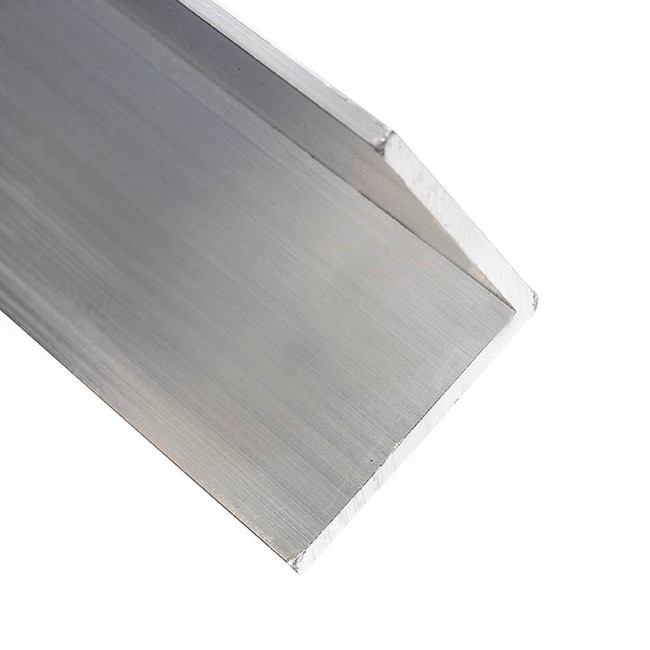

Angle: 1-3/4" Width x 1-3/4" Height x 1/8" Thickness - 6063-T5 Aluminum

Angle: 1-3/4" Width x 1-3/4" Height x 1/8" Thickness - 6063-T5 Aluminum Product Information

Aluminum angles are essential structural components used in framing, bracing, edge protection, and general fabrication. Their 90-degree profile offers strength and simplicity, making them a versatile solution in construction, cabinetry, signage, and custom project work. Lightweight and corrosion-resistant, they're easy to machine and integrate into a wide range of applications.

Highlights

• Structural Support – Provides stability in framing, bracketing, and protective edge use
• Durable Aluminum – Corrosion-resistant for long-term performance
• Machinable – Easy to cut, drill, or machine for project-specific needs
• Right-Angle Design – Clean profile for precise alignment and structural strength
• Versatile Applications – Ideal for construction, cabinetry, signage, displays, and custom builds

Need custom sizes or extrusions? Check out our customization services.

• Width:1-3/4"
• Height:1-3/4"
• Wall Thickness:1/8"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-0.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-0.9%
Manganese 0-0.1%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.1%
Other 0.05-0.15%
