Slide Track - Locking - Deep Security Base: 1-3/16" Width x 1/2" Height x 1/16" Thickness - 6063-T5 Aluminum

Slide Track - Locking - Deep Security Base: 1-3/16" Width x 1/2" Height x 1/16" Thickness - 6063-T5 Aluminum Product Information

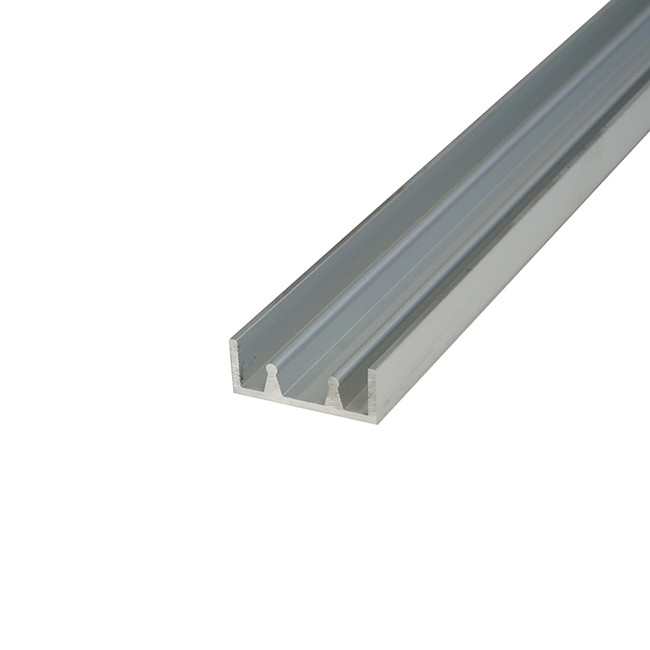

Deep Security Base Track Extrusion is the lower track used in the Locking Slide Track system for sliding doors. Its deeper profile provides added support and allows room for locking hardware. Commonly used in cabinets, showcases, and secure enclosures.

Highlights

• Lower Track for Sliding Doors – Guides the roller assembly along the bottom edge.
• Deep Channel Profile – Provides extra space for lock components and added panel stability.
• Fits Locking Slide Track System – Works with compatible shoes, inserts, and locking hardware.
• Supports Smooth Sliding – Helps ensure consistent movement across bypass door panels.
• Used in Display and Cabinet Fixtures – Ideal for retail showcases and secure enclosures.

Complete your showcase project with our premium locking slide track system for 1/4" Glass:

• Locking Slide Track Shoe SKU# LSTS63
• Locking Slide Track Steel Ball Bearing Roller SKU# LSTBBR
• Locking Slide Track Plunger Lock & Security Clip Set SKU# LSTPL
• Locking Slide Track End Cap SKU# LSTEC
• Locking Slide Track Finger Pull End Cap SKU# LSTFPC
• Locking Slide Track Vinyl Shoe Insert SKU# LSTVSI
• Locking Slide Track Security Base SKU# LSTSB63
• Locking Slide Track Deep Security Base SKU# LSTDSB63
• Locking Slide Track Deep Header SKU# LSTDH63
• Locking Slide Track Deep Header Insert SKU# LSTDHI
• Slide Track Vertical Jamb SKU# STVJ63

Need custom sizes or extrusions? Check out our customization services.

• Width:1-3/16"
• Height:1/2"
• Wall Thickness:1/16"
• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
