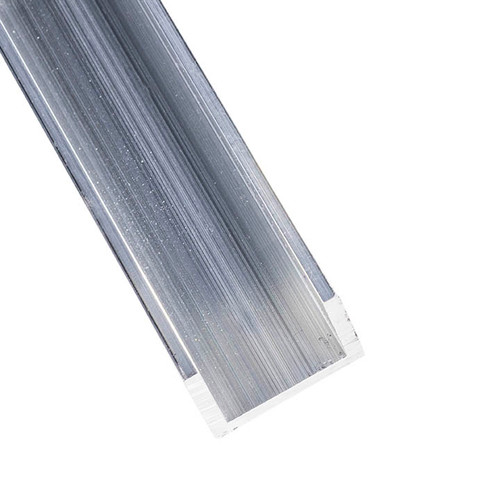

Channel: 1-1/4" x 1" x 1/8" - Fits 1" Product Information
Orange Aluminum Channels in 1-1/4" x 1" x 1/8" - Fits: 1" dimensions (1.25" x 1" x 0.125" - Fits: 1") are a versatile choice for door framing, wire protection, and harnessing applications. Built from 6063 Ultra-Corrosive Resistant Architectural Grade Alloy with a T5 temper, these channels offer durability and strength, making them ideal for both residential and commercial projects.
Available in convenient cut lengths of 48", 72" + 24" Combo, and 96", they provide flexibility to meet various project specifications. Comes in a Mill finish for a durable, corrosion-resistant finish that ensures longevity.
Key Features:
- Versatile Dimensions: 1-1/4" W x 1" H x 1/8" Wall - Fits: 1" for a range of framing and protective uses.
- High-Quality Alloy: Crafted from 6063-T5 aluminum alloy for strength and corrosion resistance.
- Finish Options: Offered in Mill finish for both aesthetic appeal and durability.
- Multiple Lengths: Available in 48", 72" + 24" Combo, and 96" lengths to meet various needs.
These channels are perfect for adding structural support and protective framing to any project, ensuring both functionality and a professional look.
- Alloy & Temper:6063-T5
- Specification Met:ASTM B221-14
- Made in:America
- Yield Strength:16k PSI-1
- Hardness:Brinell 55
- RoHS:RoHS 3 (2017/2102/EU) Compliant
- REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
- DFARS:Specialty Metals COTS-Exempt
- Materials:See Specification
- Aluminium 95.1%
- Chromium 0-.1%
- Copper 0-0.1%
- Iron 0-0.7%
- Magnesium 0.45-.90%
- Manganese 0-0.10%
- Silicon 0.2-0.6%
- Titanium 0-0.1%
- Zinc 0-0.10%
- Other 0.05-0.15%
