Shelf Stiffener - Scalloped - 6063-T5 Aluminum

Shelf Stiffener - Scalloped - 6063-T5 Aluminum Product Information

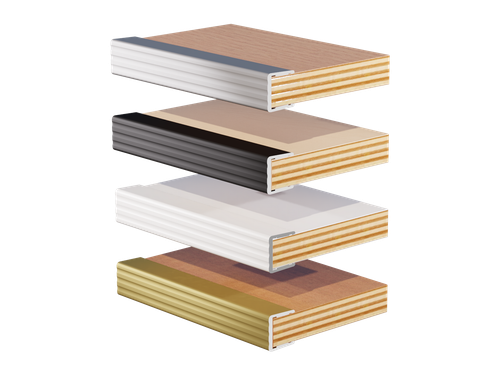

Shelf Stiffener – Scalloped is designed to reinforce 3/4” and 1" thick shelving and prevent sagging under load. This pressure-fit aluminum profile features a scalloped face for a clean edge and is commonly used in storage, utility, and display shelving. Suitable for garages, kitchens, workshops, and commercial settings.

Highlights

• Load-Bearing Support – Reinforces shelf spans to prevent deflection from heavy items.
• Grooved Front Profile – Adds a scalloped finished design while maintaining shelf strength and alignment.
• Pressure-Fit Installation – Designed to grip standard 3/4” and 1" thick shelving without additional hardware.
• Multiple Finish Options – Available in clear anodized, gold anodized, white, and black powder coat finishes.
• Application Versatility – Used in garages, workshops, kitchens, utility rooms, and commercial displays.

Technical Specifications:

• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
