Aluminum Round Bar 5mm Diameter – 6061-T6

Aluminum Round Bar 5mm Diameter – 6061-T6 Product Information

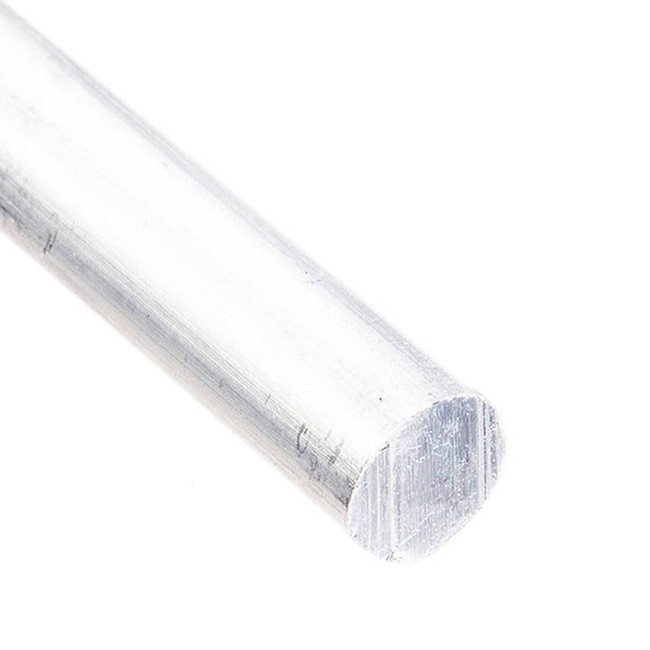

Aluminum Round Bar is a solid cylindrical aluminum profile designed for structural, machining, and fabrication applications. Commonly referred to as aluminum rod, this profile provides consistent strength and uniform geometry for precision components and custom builds.

Manufactured from corrosion-resistant aluminum alloy, round bars offer excellent strength-to-weight ratio and machinability. These properties make them ideal for cutting, drilling, tapping, and turning in a wide range of applications.

Common Applications

• Shafts, pins, and spacers
• Machined components and custom parts
• Structural supports and reinforcement
• Architectural and fabrication projects
• Industrial and manufacturing applications

Technical Specifications

• Outside Diameter:5mm
• Alloy & Temper:6061-T6
• Specification Met:ASTM B221-14
• RoHS:RoHS 3 (2015/863/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Country of Origin:United States of America
• Materials:See Specification
Aluminum 95.85%
Chromium 0.04-0.35%
Copper 0.15-0.4%
Iron 0-0.7%
Magnesium 0.8-1.2%
Manganese 0-0.15%
Nickel 0-0.5%
Silicon 0.4-0.6%
Titanium 0-0.15%
Zinc 0-0.25%
Zirconium 0-0.25%
Other 0.15%
