H-Bar: 2-1/8" Width x 1-1/2" Height x 1/16" Thickness - Fits 2" - 6063-T5 Aluminum

H-Bar: 2-1/8" Width x 1-1/2" Height x 1/16" Thickness - Fits 2" - 6063-T5 Aluminum Product Information

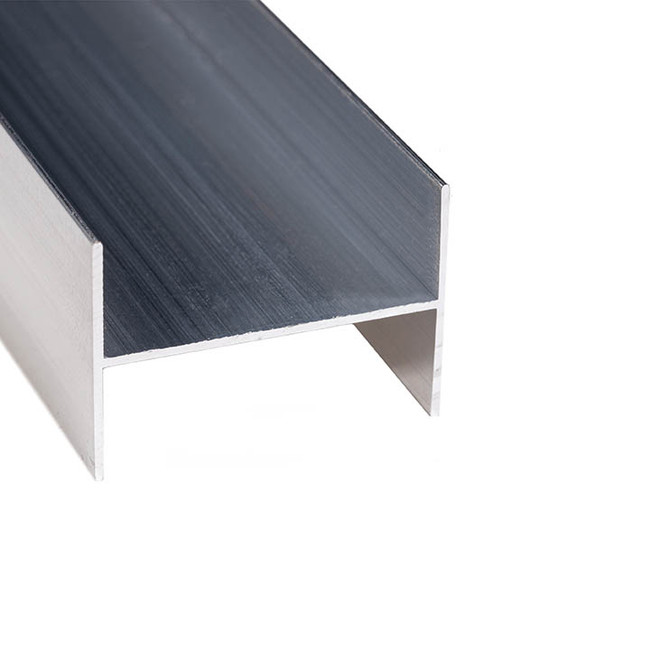

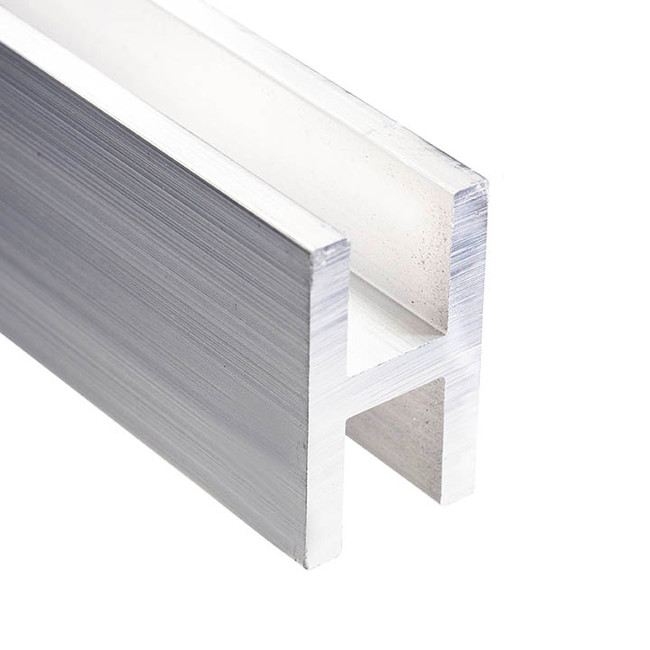

Aluminum H Bar is used to join two panels edge-to-edge, creating a clean and aligned connection. Often used in wall systems, architectural panels, furniture, and displays, this extrusion provides support while maintaining a flush, minimal seam.

Highlights

• Panel Connector – Joins panels side-by-side for a continuous surface.
• Clean Edge Alignment – Maintains consistent spacing and straight lines between materials.
• Fits Common Panel Thicknesses – Designed to support standard wall and casework materials.
• Used in Architectural and Interior Systems – Common in paneling, cabinetry, partitions, and retail displays.
• Easy to Cut and Install – Can be trimmed to size and secured with adhesives or mechanical fasteners.

Need custom sizes or extrusions? Check out our customization services.

• Width:2-1/8"
• Height:1-1/2"
• Wall Thickness:1/16"
• Fits:2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Country of Origin:United States of America
• Materials:See Specification
Aluminum 95.1%
Chromium 0-0.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-0.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
