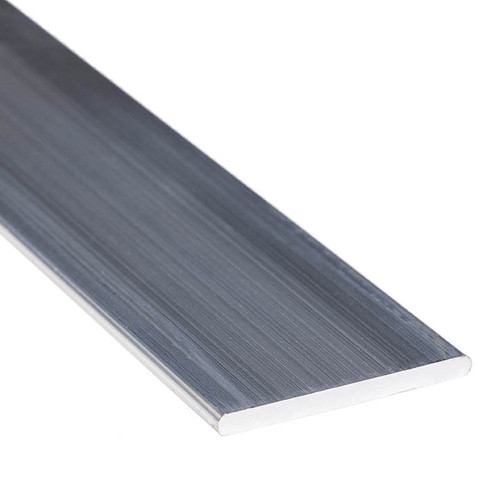

Aluminum Radiused Flat Bar 1-1/2" x 1/8" – 1/16" Radius – 6063-T5

Aluminum Radiused Flat Bar 1-1/2" x 1/8" – 1/16" Radius – 6063-T5 Product Information

Radiused Aluminum Flat Bar is a solid aluminum profile featuring rounded edge corners designed to provide improved durability, safer handling, and a more refined finished appearance compared to standard flat stock.

The softened edges help reduce stress concentration and eliminate sharp corners, making radiused flat bars ideal for architectural installations, exposed structural components, fabrication projects, and applications where edge finish is important.

Manufactured from corrosion-resistant aluminum alloys such as 6063-T5, radiused flat bars combine lightweight strength with excellent machinability, allowing them to be easily cut, drilled, tapped, or fabricated for custom projects.

Common Applications

• Architectural trim and finishing elements
• Equipment frames and structural reinforcement
• Furniture and cabinetry components
• Panel support systems
• Fabrication projects requiring smooth edge geometry

Technical Specifications

• Width:1-1/2"
• Height:1/8"
• Wall Thickness:1/8"
• Radius:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• Country of Origin:United States of America
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
