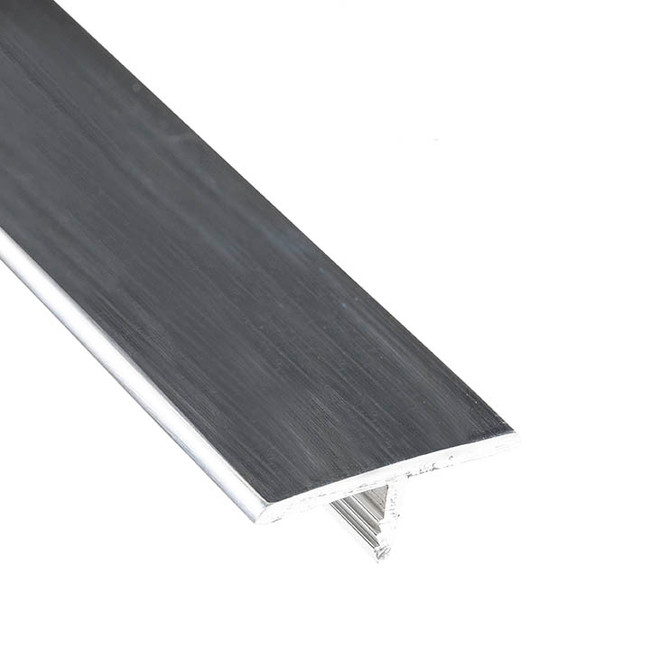

Push In Edge Trim (Smooth): 1-1/4" Width x 1/2" Height x 1/16" Thickness - Covers 1-1/4" - 6063-T5 Aluminum

Push In Edge Trim (Smooth): 1-1/4" Width x 1/2" Height x 1/16" Thickness - Covers 1-1/4" - 6063-T5 Aluminum Product Information

Push-In Edge Trim is designed to snap securely into routed grooves or kerfs along panel edges, providing a clean, finished transition without adhesives or mechanical fasteners. Commonly used in cabinetry, displays, and interior panels where quick installation and subtle finishing are key.

Highlights

• Press-Fit Installation – Snaps into routed grooves for a secure, tool-free fit.
• Clean Edge Coverage – Conceals exposed edges and kerf lines for a smooth appearance.
• No Adhesives Required – Holds firmly in place through pressure-fit design.
• Quick to Install – Ideal for high-volume production or on-site adjustments.
• Used in Millwork and Fixtures – Fits retail displays, cabinetry, and architectural panel systems.

Need custom sizes or extrusions? Check out our customization services.

• Width:1-1/4"
• Height:1/2"
• Wall Thickness:1/16"
• Covers:1-1/4"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
