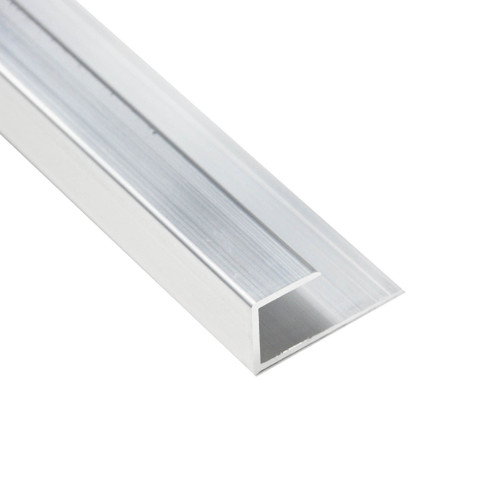

J-Channel Edge Trim: 1/2" Width x 7/8" Height x 1/16" Thickness - Fits 3/8" - 3/8" Reveal - 6063-T5 Aluminum

J-Channel Edge Trim: 1/2" Width x 7/8" Height x 1/16" Thickness - Fits 3/8" - 3/8" Reveal - 6063-T5 Aluminum Product Information

J-Channel Edge Trim is designed to slide over panel edges for a clean, finished look and added protection. It helps cover raw edges, conceal seams, and guard against chipping or wear. Commonly used in casework, signage, displays, and furniture panels.

Highlights

• Edge Cover Profile – Slides over panel edges to hide seams and protect finishes.
• Snap-On Fit – Secures in place without adhesives or mechanical fasteners.
• Protects Against Damage – Shields exposed edges from chipping, impact, or wear.
• Versatile Use – Compatible with a wide range of panel types and thicknesses.
• Used in Fixtures and Fabrication – Ideal for display panels, cabinetry, casework, and signage.

Need custom sizes or extrusions? Check out our customization services.

• Width:1/2"
• Height:7/8"
• Wall Thickness:1/16"
• Fits:3/8"
• Reveal:3/8"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
