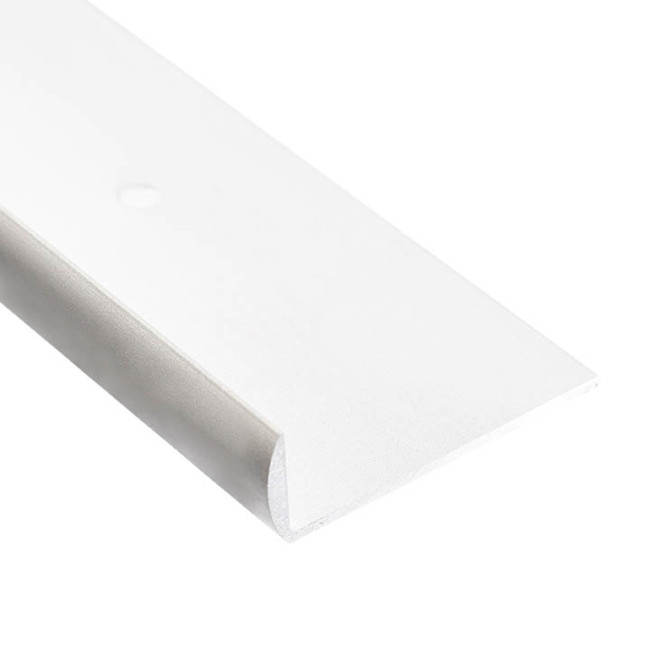

Heavy Lip Edge Trim: 9/16" Width x 29/32" Height x 1/16" Thickness - Covers 13/16" - 17/32" Reveal - 7/16" Radius - 6063-T5 Aluminum

Heavy Lip Edge Trim: 9/16" Width x 29/32" Height x 1/16" Thickness - Covers 13/16" - 17/32" Reveal - 7/16" Radius - 6063-T5 Aluminum Product Information

Heavy Lip Edge Trim is designed to cover and protect larger edge surfaces where a deeper lip or overlapping face is needed. This profile wraps around panel edges to conceal seams, reinforce corners, and create a clean, uniform appearance. Commonly used in cabinetry, displays, casework, and enclosures.

Highlights

• Deep Lip Coverage – Wraps over wider panel faces for added edge protection.
• Overlapping Face Design – Provides a more substantial trim option than standard edge profiles.
• Conceals Seams and Edges – Creates a smooth transition between surfaces.
• Durable Trim Solution – Holds up in high-use environments and installation handling.
• Used in Millwork and Fixture Builds – Ideal for cabinets, displays, and custom enclosures.

Need custom sizes or extrusions? Check out our customization services.

• Width:9/16"
• Height:29/32"
• Wall Thickness:1/16"
• Covers:13/16"
• Reveal:17/32"
• Radius:7/16"
• Alloy & Temper:6063-T5
• Country of Origin:United States of America"
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
