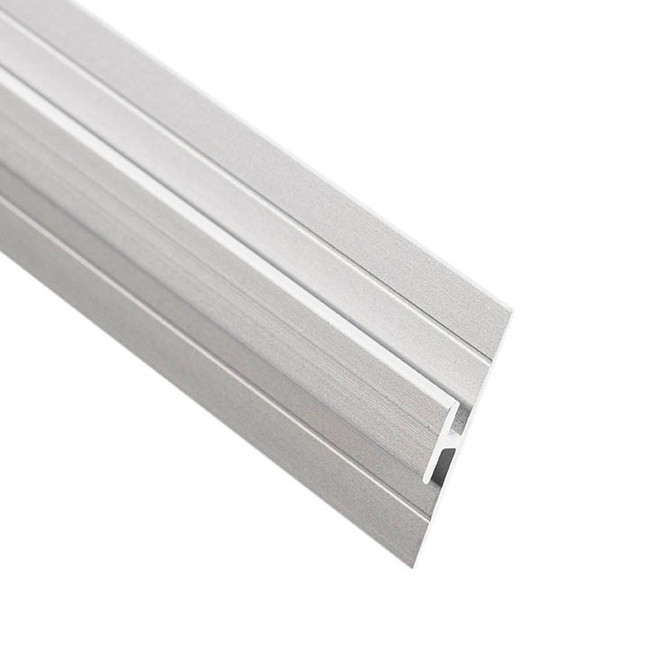

Divider Bar: 1" Width x 1/32" Thickness - 5/16" Reveal - Fits 1/16" - 6063-T5 Aluminum

Divider Bar: 1" Width x 1/32" Thickness - 5/16" Reveal - Fits 1/16" - 6063-T5 Aluminum Product Information

Divider Bars are used to join and align panels side-by-side, creating a clean break between sections. Often used in wall paneling systems, casework, and display assemblies, they help maintain spacing and provide a finished visual seam between materials.

Highlights

• Panel Joiner Profile – Connects two flat panels edge-to-edge with a consistent reveal.
• Common in Wall Systems – Frequently used in vertical or horizontal panel layouts for clean transitions.
• Aligns and Supports – Helps hold panels in place and reinforces joint alignment.
• Clean Finish Between Panels – Adds a simple dividing line without bulky hardware.
• Used in Cabinetry and Interiors – Ideal for built-ins, partitions, and decorative wall treatments.

Need custom sizes or extrusions? Check out our customization services.

• Width:1"
• Wall Thickness:1/32"
• Reveal:5/16"
• Fits:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
