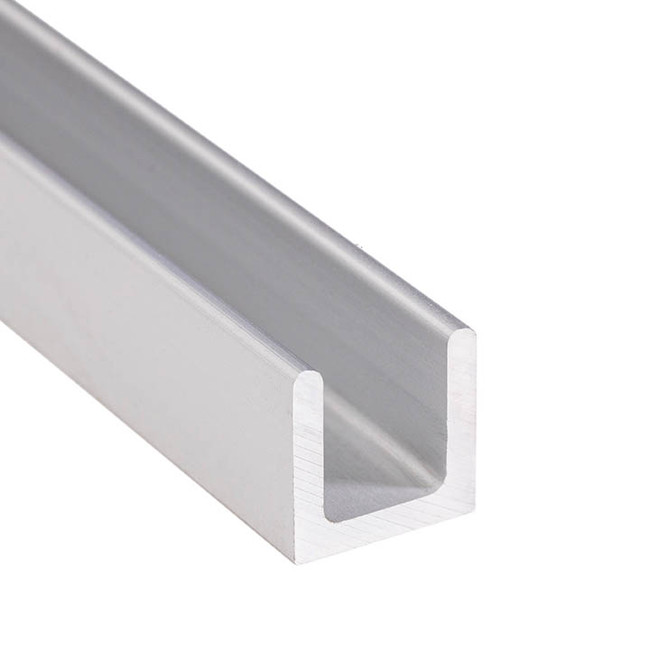

Aluminum Radiused U Channel 2" x 2" x 1/8" – Fits 1-3/4" – 1/8" Radius – 6063-T5

Aluminum Radiused U Channel 2" x 2" x 1/8" – Fits 1-3/4" – 1/8" Radius – 6063-T5 Product Information

Radiused Aluminum U Channel features softened internal corners designed to reduce stress concentration and improve durability in structural and panel support applications. The internal radius allows materials to seat smoothly within the channel while minimizing sharp corner contact.

This design is particularly useful for installations where panel edges, glass inserts, or materials require a smoother seating surface. Radiused channels are commonly used in equipment frames, panel systems, architectural installations, and fabrication projects where both structural performance and clean finishing are important.

Extruded from corrosion-resistant aluminum alloys such as 6063-T5, radiused U channels maintain excellent strength-to-weight ratio while remaining easy to cut, drill, and fabricate.

Common Applications

• Panel and glass support systems
• Architectural framing and trim
• Equipment enclosures and structural builds
• Projects requiring reduced edge stress
• Fabrication requiring smooth internal geometry

Technical Specifications

• Width:2"
• Height:2"
• Wall Thickness:1/8"
• Fits:1-3/4"
• Radius:1/8"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• Country of Origin:United States of America
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
