Outside Corner: 31/32" Width x 31/32" Height x 1/32" Thickness x 9/32" Reveal - Fits 1/4" - 6063-T5 Aluminum

Outside Corner: 31/32" Width x 31/32" Height x 1/32" Thickness x 9/32" Reveal - Fits 1/4" - 6063-T5 Aluminum Product Information

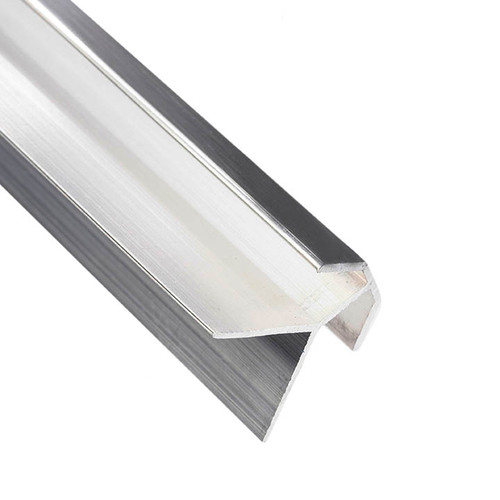

Outside Corner extrusion is used to finish and protect exterior angles where panels meet, especially in wall paneling systems. It creates a clean edge while helping prevent wear on exposed corners. Commonly used in interior cladding, cabinetry, and architectural millwork.

Highlights

• Corner Edge Protection – Covers and reinforces exterior angles between panels.
• Ideal for Wall Paneling – Frequently used to finish transitions in wall systems and vertical cladding.
• Clean, Finished Look – Delivers a smooth exterior corner without visible fasteners.
• Durable and Easy to Work With – Cuts cleanly and installs easily in custom layouts.
• Used in Interiors and Millwork – Fits cabinetry, built-ins, panel wraps, and trim systems.

Need custom sizes or extrusions? Check out our customization services.

• Width:31/32"
• Height:31/32"
• Wall Thickness:1/32"
• Panel:1/4"
• Reveal:9/32"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
