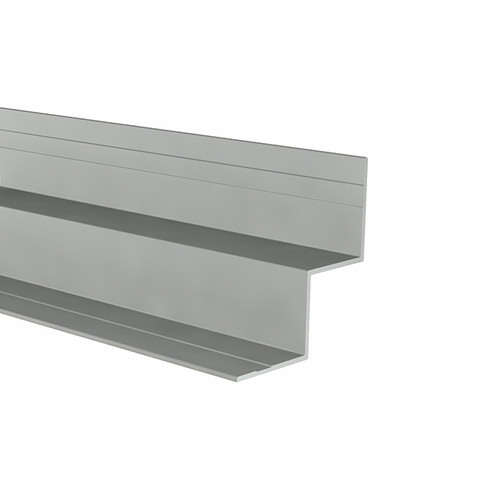

Aluminum Millwork Inside Corner Trim – 1” Panel – 1/16” Reveal – 6063-T5

Aluminum Millwork Inside Corner Trim – 1” Panel – 1/16” Reveal – 6063-T5 Product Information

Our Millwork Inside Corner Trim provides a clean, finished transition where panels meet at internal corners. Designed for modern architectural interiors, this profile helps maintain consistent reveal alignment and crisp geometry in panelized wall systems and decorative millwork.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

• Clean inside-corner transitions for panelized wall systems
• Helps maintain consistent reveal depth and alignment
• Durable aluminum profile for high-visibility interior details
• Precision extruded for repeatable installation results

Common Applications

• Inside corners on wall panel systems and feature walls
• Millwork transitions in offices, hospitality, and retail spaces
• Institutional interiors requiring clean, serviceable detailing

Technical Specifications

• Width:1-15/16"
• Height:1-15/16"
• Wall Thickness:1/16"
• Panel:1"
• Reveal:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
