No reviews yet Write a Review

Aluminum Millwork Flanged Inside Corner Trim – 3/4” Panel – 3/16” Reveal – 6063-T5

Sku:
CI6307500188-144M
SKU:
CI6307500188-144M
Width:
1-3/4"
Height:
1-3/4"
Wall Thickness:
1/16"
Panel:
3/4"
Reveal:
3/16"
Alloy & Temper:
6063-T5
Specification Met:
ASTM B221-14
Country of Origin:
United States of America
Yield Strength:
16k PSI-1
Hardness:
Brinell 55
RoHS:
RoHS 3 (2017/2102/EU) Compliant
REACH:
REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:
Specialty Metals COTS-Exempt
materials:
Aluminium 95.1%
logo:
logo:
logo:
logo:
logo:
materials:
Chromium 0-.1%
materials:
Copper 0-0.1%
materials:
Iron 0-0.7%
materials:
Magnesium 0.45-.90%
materials:
Manganese 0-0.10%
materials:
Silicon 0.2-0.6%
materials:
Titanium 0-0.1%
materials:
Zinc 0-0.10%
materials:
Other 0.05-0.15%
_finish:
Clear Anodized,Mill Finish
_industry:
Art & Framing Applications,Wall Panel Systems & Modular Interiors
Volume Discount
  • 1 - 17 $42.87
  • 18 - 35 $ 40.73
  • 36 - 53 $ 37.73
  • 54 - 71 $ 36.44
  • 72 - 89 $ 35.15
  • 90 + Contact Us
15-day Price Guarantee 15 Day Price Guarantee
Volume Discount
  • 1 - 17 $42.87
  • 18 - 35 $ 40.73
  • 36 - 53 $ 37.73
  • 54 - 71 $ 36.44
  • 72 - 89 $ 35.15
  • 90 + Contact Us
15-day Price Guarantee 15 Day Price Guarantee
Price/Piece:
$42.87

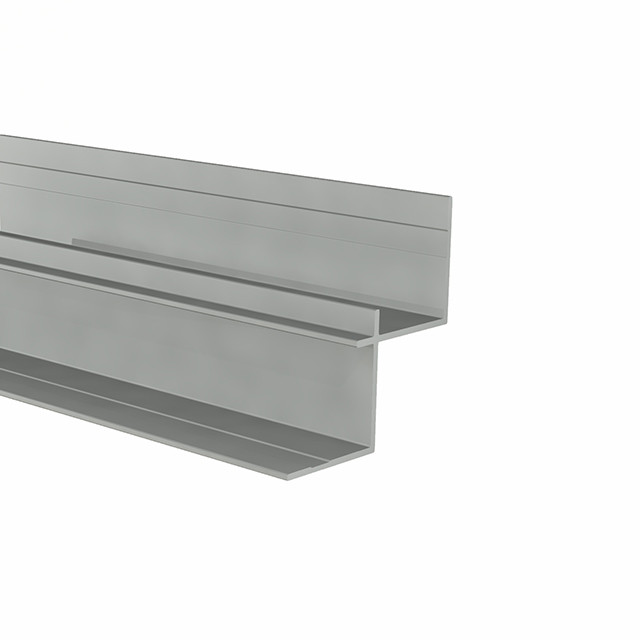

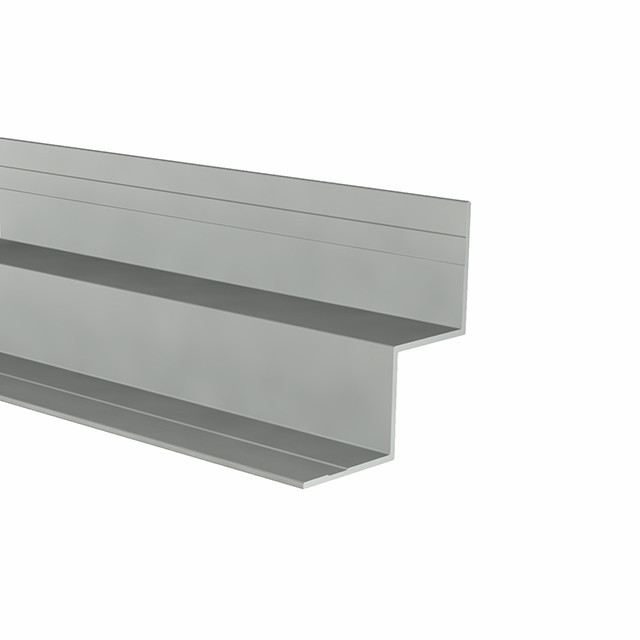

Aluminum Millwork Flanged Inside Corner Trim – 3/4” Panel – 3/16” Reveal – 6063-T5 Product Information

Our Millwork Flanged Inside Corner Trim provides clean inside-corner transitions with an integrated flange to support secure installation. It helps maintain consistent reveals and crisp alignment in architectural wall panel systems and commercial millwork.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

  • Inside-corner trim with flange for added mounting support
  • Maintains consistent reveal depth and clean interior geometry
  • Precision extruded aluminum for repeatable alignment
  • Ideal for commercial interiors and larger panel layouts

Common Applications

  • Inside corners on wall panel systems and feature walls
  • Commercial interiors requiring repeatable corner alignment
  • Retail, hospitality, office, and institutional environments

Technical Specifications

  • Width:1-3/4"
  • Height:1-3/4"
  • Wall Thickness:1/16"
  • Panel:3/4"
  • Reveal:3/16"
  • Alloy & Temper:6063-T5
  • Specification Met:ASTM B221-14
  • Country of Origin:United States of America
  • Yield Strength:16k PSI-1
  • Hardness:Brinell 55
  • RoHS:RoHS 3 (2017/2102/EU) Compliant
  • REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
  • DFARS:Specialty Metals COTS-Exempt
  • Materials:See Specification
  • Aluminium 95.1%
  • Chromium 0-.1%
  • Copper 0-0.1%
  • Iron 0-0.7%
  • Magnesium 0.45-.90%
  • Manganese 0-0.10%
  • Silicon 0.2-0.6%
  • Titanium 0-0.1%
  • Zinc 0-0.10%
  • Other 0.05-0.15%
  • logo
  • logo
  • logo
  • logo
  • logo
Volume Discount
  • 1 - 17 $42.87
  • 18 - 35 $ 40.73
  • 36 - 53 $ 37.73
  • 54 - 71 $ 36.44
  • 72 - 89 $ 35.15
  • 90 + Contact Us
15-day Price Guarantee 15 Day Price Guarantee
Price/Piece:
$42.87
