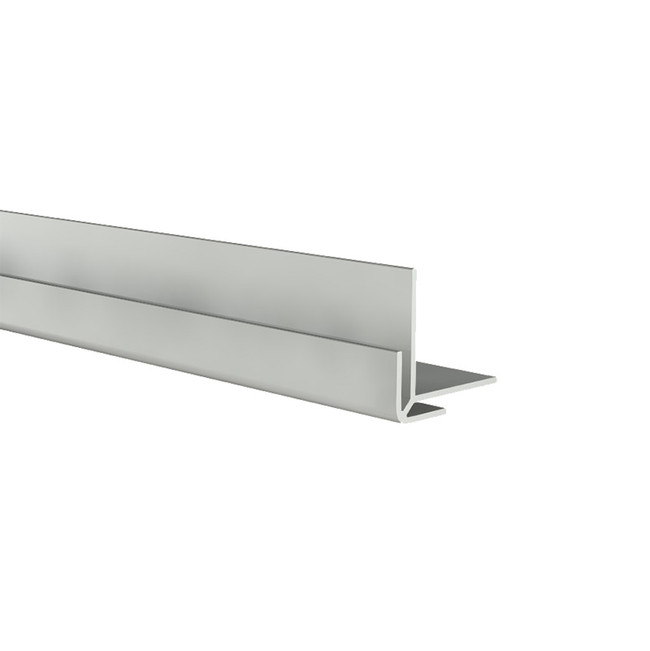

Inside Corner - Laminate: 1-3/32" Width x 9/16" Height x 1/16" Thickness x 7/16" Reveal - Fits 3/32" - 6063-T5 Aluminum

Inside Corner - Laminate: 1-3/32" Width x 9/16" Height x 1/16" Thickness x 7/16" Reveal - Fits 3/32" - 6063-T5 Aluminum Product Information

Inside Corner profiles are designed to create smooth, finished transitions between panels or surfaces that meet at an interior angle. Ideal for cabinetry, casework, and wall assemblies, these extrusions help conceal seams while reinforcing the joint against wear and movement. With a clean, angular design and durable aluminum construction, they provide both functional support and a refined appearance in interior builds.

Highlights

• Seam Covering Solution – Hides and protects internal joints where two surfaces meet at a right angle.
• Clean Interior Transition – Delivers a polished corner detail that improves both aesthetics and hygiene.
• Durable Aluminum Construction – Resists corrosion and wear in residential, commercial, or industrial settings.
• Easy to Cut and Fit – Can be trimmed and fabricated to accommodate a variety of panel sizes and configurations.
• Used in Millwork and Panel Systems – Frequently applied in cabinetry, built-ins, and modular assemblies.

Need custom sizes or extrusions? Check out our customization services.

• Width:1-3/32"
• Height:9/16"
• Wall Thickness:1/16"
• Panel:3/32"
• Reveal:7/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
