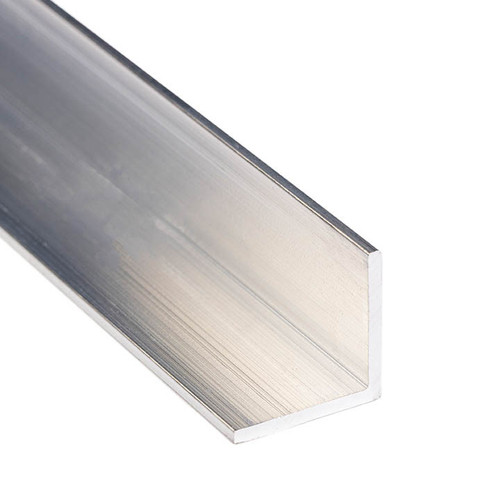

Corner Guard: 3/4" Width x 3/4" Height x 1/16" Thickness - 6063-T5 Aluminum

Corner Guard: 3/4" Width x 3/4" Height x 1/16" Thickness - 6063-T5 Aluminum Product Information

Aluminum Corner Guards are designed to protect exposed corners, structural edges, and equipment frames from impact, abrasion, and wear. Frequently installed in commercial interiors, industrial facilities, and custom enclosures, they help prevent chipping and damage caused by carts, machinery, or foot traffic. With a clean, professional profile and durable aluminum construction, these guards are a go-to solution for long-lasting corner protection.

Highlights

• Impact Protection – Shields corners from collisions, scraping, and frequent contact
• Professional Appearance – Delivers a clean, reinforced edge in high-traffic areas
• Durable Alloy – corrosion-resistant aluminum for lasting strength and reliability.
• Easy to Install & Customize – Can be cut, drilled, or fabricated to fit specific needs
• Wide Use Cases – Ideal for warehouses, offices, healthcare facilities, and custom-built installations

Need custom lengths, angles, or fabrication? Check out our customization services.

• Width:3/4"
• Height:3/4"
• Thickness:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-0.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-0.9%
Manganese 0-0.1%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.1%
Other 0.05-0.15%
