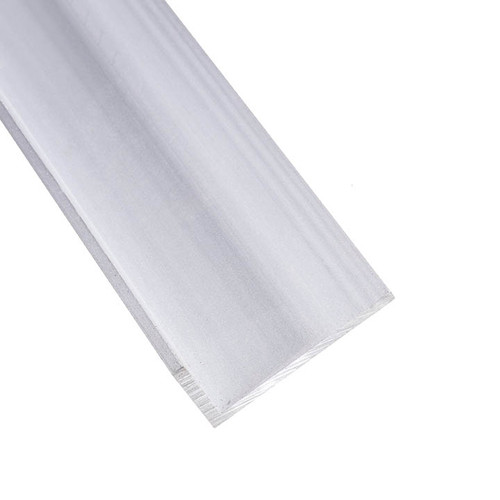

Aluminum Unequal Angle 2" x 1" x 1/8" — 6063-T5

Aluminum Unequal Angle 2" x 1" x 1/8" — 6063-T5 Product Information

Aluminum Unequal Leg Angle features two legs of different lengths, allowing for increased design flexibility and asymmetric load distribution. This profile is commonly used where one leg must provide extended mounting surface while the other delivers structural support.

The unequal configuration makes this angle ideal for mounting brackets, offset framing, reinforcement applications, and structural transitions. Lightweight and corrosion-resistant, it performs reliably in fabrication, construction, and industrial environments.

Common Applications

• Mounting and bracket fabrication
• Offset structural framing
• Reinforcement where asymmetric load support is required
• Custom fabrication and industrial builds

Technical Specifications

• Width:2"
• Height:1"
• Wall Thickness:1/8"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
