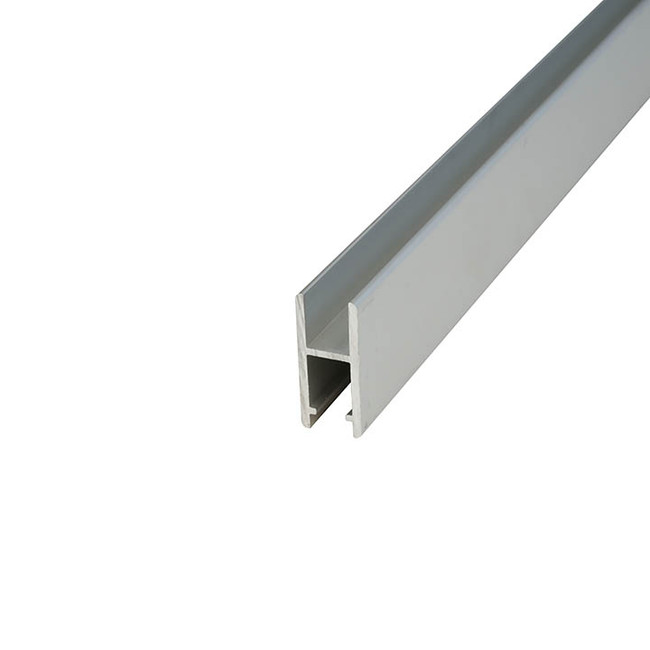

Slide Track - Locking - Track Shoe: 1/2" Width x 1-1/16" Height x 1/16" Thickness - Fits 1/4" - 6063-T5 Aluminum

Slide Track - Locking - Track Shoe: 1/2" Width x 1-1/16" Height x 1/16" Thickness - Fits 1/4" - 6063-T5 Aluminum Product Information

Locking Slide Track Shoe is the mounting base for sliding door rollers in the Locking Slide Track system. It secures the roller and vinyl insert to hold glass panels in place while enabling smooth bypass movement. Commonly used in secure showcases, retail enclosures, and sliding door cabinets.

Highlights

• Roller Housing Component – Holds the steel roller to support sliding panel motion.
• Glass Panel Securement – Works with vinyl inserts to stabilize glass inside the shoe.
• Compatible with Locking System – Designed to integrate with Locking Slide Track components for security.
• Supports Smooth Sliding Action – Enables low-friction door operation along the lower track.
• Used in Security and Display Fixtures – Ideal for locked showcases, display cabinets, and utility enclosures.

Complete your showcase project with our premium locking slide track system for 1/4" Glass. Compatible Parts Include:

• Locking Slide Track Shoe SKU# LSTS63
• Locking Slide Track Steel Ball Bearing Roller SKU# LSTBBR
• Locking Slide Track Plunger Lock & Security Clip Set SKU# LSTPL
• Locking Slide Track End Cap SKU# LSTEC
• Locking Slide Track Finger Pull End Cap SKU# LSTFPC
• Locking Slide Track Vinyl Shoe Insert SKU# LSTVSI
• Locking Slide Track Security Base SKU# LSTSB63
• Locking Slide Track Deep Security Base SKU# LSTDSB63
• Locking Slide Track Deep Header SKU# LSTDH63
• Locking Slide Track Deep Header Insert SKU# LSTDHI
• Slide Track Vertical Jamb SKU# STVJ63

Need custom sizes or extrusions? Check out our customization services.

• Width:1/2"
• Height:1-1/16"
• Wall Thickness:1/16"
• Fits:1/4"
• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
