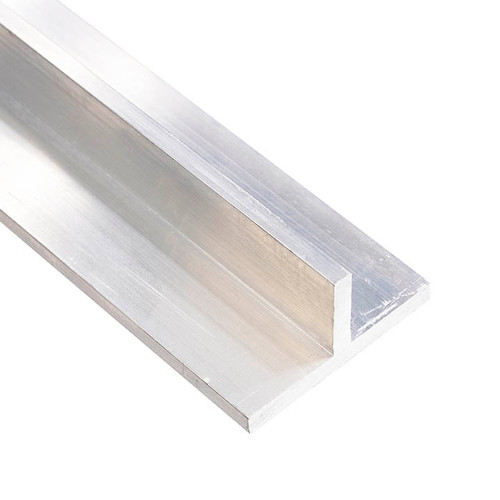

T-Bar: 2" Width x 1" Height x 3/16" Thickness - 6061-T6 Aluminum

T-Bar: 2" Width x 1" Height x 3/16" Thickness - 6061-T6 Aluminum Product Information

T Bars provide strong, reliable support for structural and decorative applications where load distribution and edge definition are key. With a balanced T-shaped profile and higher temper aluminum construction, these extrusions are engineered for enhanced strength and stiffness. Commonly used for framework, trim, divider panels, and architectural accents, T Bars deliver clean lines and dependable performance across a wide range of projects.

Highlights

• Balanced Structural Profile – The T-shaped form delivers equal support across both top and vertical sections
• Multi-Use Functionality – Ideal for reinforcing joints, dividing panels, or adding architectural detail
• High-Strength Alloy – Manufactured from a higher temper aluminum for increased rigidity and durability
• Clean, Symmetrical Appearance – Enhances visual uniformity in framing and trim applications

Need custom sizes or extrusions? Check out our customization services.

• Width:2"
• Height:1"
• Wall Thickness:3/16"
• Alloy & Temper:6061-T6
• Specification Met:ASTM B221-14
• RoHS:RoHS 3 (2015/863/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Country of Origin:United States of America
• Materials:See Specification
Aluminum 95.85%
Chromium 0.04-0.35%
Copper 0.15-0.4%
Iron 0-0.7%
Magnesium 0.8-1.2%
Manganese 0-0.15%
Nickel 0-0.5%
Silicon 0.4-0.6%
Titanium 0-0.15%
Zinc 0-0.25%
Zirconium 0-0.25%
Other 0.15%
