Pull Handle - Angled Drawer Pull - 6063-T5 Aluminum

Pull Handle - Angled Drawer Pull - 6063-T5 Aluminum Product Information

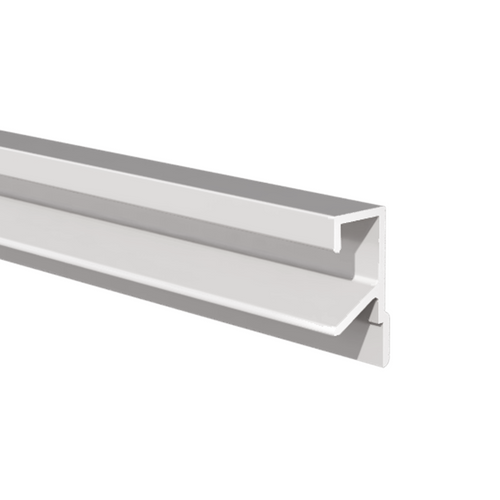

This aluminum architectural pull is designed to mount atop drawer or panel surfaces with a clean, flush mortise fit. Featuring a special internal angular detail, it overlaps the material for a seamless top-mounted appearance and is secured through the back flange for added strength.

Highlights

• Flush Mortise Mount – Sits neatly atop material for a low-profile, integrated look
• Angular Interior Profile – Designed for a snug, precise fit over panel edges
• Rear-Flange Fastening – Attaches from behind for a secure, hidden installation
• Clean Architectural Finish – Ideal for modern cabinetry, panels, and fixtures
• Durable Construction – Aluminum body resists corrosion and wear in demanding environments

Technical Specifications:

• Country of Origin:United States of America
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
