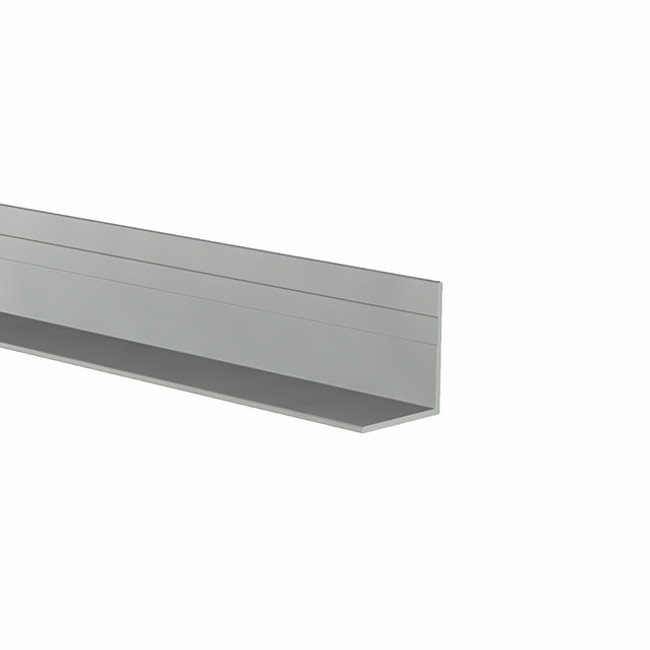

Aluminum Millwork Angle Edge Trim – 1” Panel – 1/16” Reveal – 6063-T5

Aluminum Millwork Angle Edge Trim – 1” Panel – 1/16” Reveal – 6063-T5 Product Information

Our Millwork Angle Edge Trim delivers a clean, finished edge for panel systems while maintaining crisp architectural lines. Use it to protect exposed panel edges and create refined transitions in wall paneling, casework, and decorative millwork.

For concealed mounting and a streamlined install, we recommend pairing with our MF375 Panel Cleats. The low-profile cleat design supports clean alignment and serviceable, removable panels where needed.

Key Benefits

• Creates a clean, modern edge detail for architectural panels
• Protects panel edges in high-traffic commercial interiors
• Supports consistent alignment across vertical and horizontal runs
• Precision extruded aluminum for repeatable fit and finish

Common Applications

• Panel edge terminations for wall systems and feature walls
• Cabinetry, casework, and built-in millwork
• Retail, hospitality, office, and institutional interiors

Technical Specifications

• Width:13/16"
• Height:15/16"
• Wall Thickness:1/16"
• Panel:1"
• Reveal:1/16"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminum 95.1%
Chromium 0-0.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-0.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
