Aluminum U Channel 3" x 2" x 1/4" – Fits 2-1/2" – 6063-T5

Aluminum U Channel 3" x 2" x 1/4" – Fits 2-1/2" – 6063-T5 Product Information

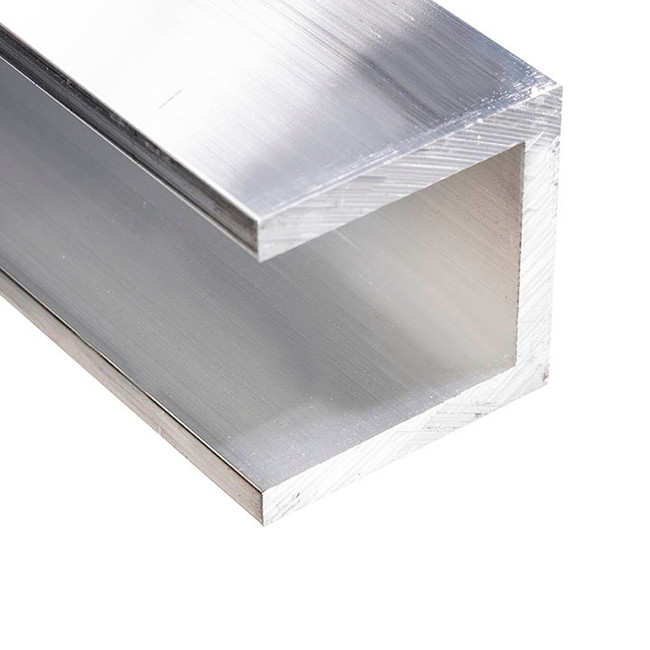

Aluminum U Channel is a versatile structural profile designed to hold, guide, or frame panels, glass, boards, and other materials. The three-sided channel shape creates a secure track that allows materials to slide or seat firmly within the profile, making it ideal for panel framing, edge protection, and structural reinforcement.

Manufactured from corrosion-resistant aluminum alloys such as 6063-T5, aluminum U channels are lightweight yet durable and easy to cut, drill, or machine. These extrusions are widely used in cabinetry, architectural trim, display systems, equipment enclosures, shelving, and industrial fabrication.

The straight internal corners provide consistent contact along the edges of inserted materials, helping maintain clean alignment and stable support for panels and structural components.

Common Applications

• Panel framing and edge protection
• Glass, acrylic, and board channel tracks
• Cabinet and furniture construction
• Equipment enclosures and protective guards
• Architectural trim and fabrication projects

Technical Specifications

• Width:3"
• Height:2"
• Wall Thickness:1/4"
• Fits:2-1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• Country of Origin:United States of America
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
