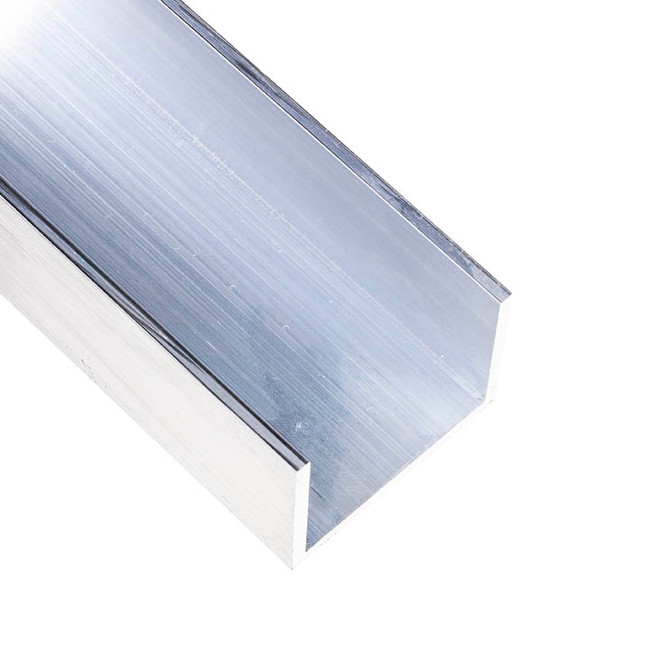

Channel: 2" x 1-1/2" x 1/8" - Fits 1-3/4" Product Information
Orange Aluminum Channels in 2" x 1-1/2" x 1/8" - Fits: 1-3/4" dimensions (2" x 1.5" x 0.125" - Fits: 1.75") are a versatile choice for door framing, wire protection, and harnessing applications. Built from 6063 Ultra-Corrosive Resistant Architectural Grade Alloy with a T5 temper, these channels offer durability and strength, making them ideal for both residential and commercial projects.
Available in convenient cut lengths of 48", 72" + 24" Combo, 96", and 144" they provide flexibility to meet various project specifications. Choose between a Mill and Clear Anodized finishes for a polished, corrosion-resistant finish that ensures longevity.
Key Features:
- Versatile Dimensions: 2" x 1-1/2" x 1/8" - Fits: 1-3/4" for a range of framing and protective uses.
- High-Quality Alloy: Crafted from 6063-T5 aluminum alloy for strength and corrosion resistance.
- Finish Options: Offered in Mill or Clear Anodized finishes for both aesthetic appeal and durability.
- Multiple Lengths: Available in 48", 72" + 24" Combo, 96", and 144" lengths to meet various needs.
These channels are perfect for adding structural support and protective framing to any project, ensuring both functionality and a professional look.
- Alloy & Temper:6063-T5
- Specification Met:ASTM B221-14
- Made in:America
- Yield Strength:16k PSI-1
- Hardness:Brinell 55
- RoHS:RoHS 3 (2017/2102/EU) Compliant
- REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
- DFARS:Specialty Metals COTS-Exempt
- perimeter:9.75
- Materials:See Specification
- Aluminium 95.1%
- Chromium 0-.1%
- Copper 0-0.1%
- Iron 0-0.7%
- Magnesium 0.45-.90%
- Manganese 0-0.10%
- Silicon 0.2-0.6%
- Titanium 0-0.1%
- Zinc 0-0.10%
- Other 0.05-0.15%
