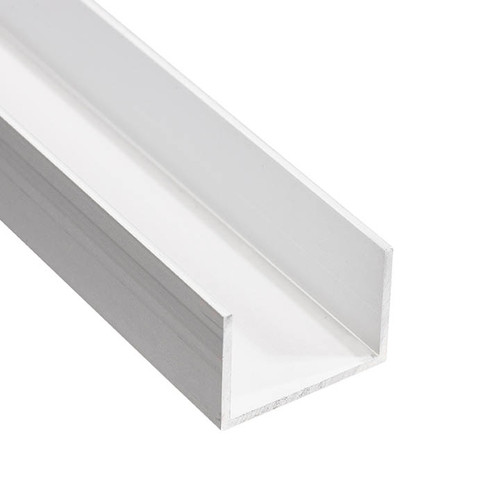

Channel: 1-1/8" Width x 13/16" Height x 1/16" Thickness - Fits 1" - 6063-T5 Aluminum

Channel: 1-1/8" Width x 13/16" Height x 1/16" Thickness - Fits 1" - 6063-T5 Aluminum Product Information

Aluminum Channels offer a reliable and professional-grade solution for framing, edge protection, and structural support in a wide range of applications. Commonly used in door framing, wire containment, and mounting assemblies, these U-shaped extrusions provide clean lines and dependable performance. With a corrosion-resistant finish and versatile profile, they are a smart choice for both residential and commercial environments.

Highlights

• Versatile Framing Solution – Ideal for trim, edge protection, and structural reinforcement in custom builds.
• Clean Architectural Look – U-channel shape delivers a sleek, polished appearance in visible installations.
• Durable Aluminum Alloy – Made from a high-quality, corrosion-resistant material built for long-term use.
• Flexible Use Cases – Perfect for cabinetry, fixtures, partitions, and enclosure systems.
• Finish-Ready Surface – Offered in a clear anodized coating for added durability and visual consistency.

Need custom sizes or extrusions? Check out our customization services.

• Width:1-1/8"
• Height:13/16"
• Wall Thickness:1/16"
• Fits:1"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• Country of Origin:United States of America
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
