Panel Cleat® XL Aluminum French Cleat Bracket – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC637919-72MH

SKU:: ZC637919-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 3/4"
Offset/Projection:: 3/8"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® XL Aluminum French Cleat Bracket – Panel Rail & Z-Clips – 6063-T5 Product Information

The XL Panel Cleat® is an extra-large aluminum French cleat for oversized wall panels and heavy architectural elements. A 2-3/8" height, 5/32" wall and 3/4" engagement give a broad, rigid hold across long, heavy spans.

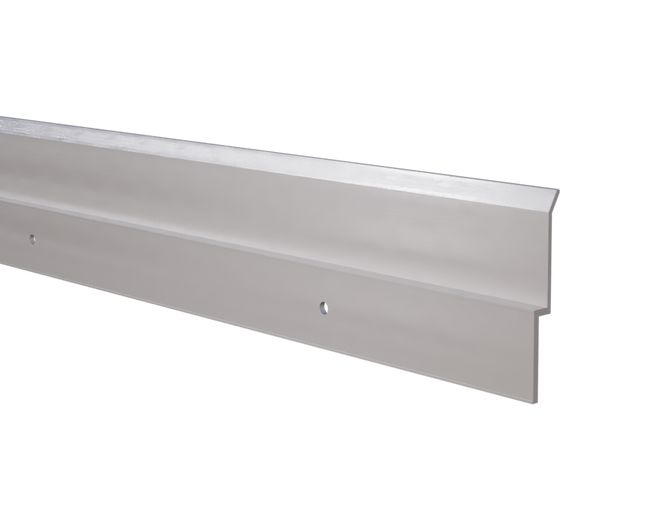

Run the continuous Panel Rail along the full panel width or use precut 2.5" Z-Clips for spot mounting. Rail and clips share one interlocking profile, so both work on the same install. Fasten one piece to the wall and its mate to the panel, then drop the panel into place. Allow 3/4" of clearance above the panel to remove it.

The 3/8" offset leaves room behind the panel to clear uneven substrates, furring or panel backers. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability
