Panel Cleat® Williamsburg XL Heavy-Duty Aluminum French Cleat – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC6313082-72MH

SKU:: ZC6313082-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 5/8"
Offset/Projection:: 3/4"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® Williamsburg XL Heavy-Duty Aluminum French Cleat – Panel Rail & Z-Clips – 6063-T5 Product Information

The Williamsburg XL Panel Cleat® is our heaviest-duty aluminum French cleat, with the largest offset and thickest wall in our cleat line: a 3/4" offset and a 3/16" wall. Use it for large, heavy panels and installs that must clear uneven walls, furring or service runs.

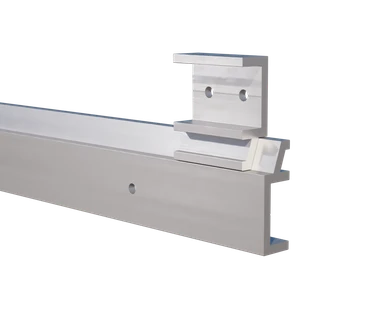

Choose the continuous Panel Rail for full-length support or precut 2" Z-Clips for spot mounting. Both share one interlocking profile and can be combined on a single install. Fix one piece to the wall, its mate to the panel, and lower the panel in. Allow 5/8" of clearance above the panel to lift it off.

A 2-1/4" height gives a wide fastening face on both sides. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Interlocking Bracket Design – Two pieces fit together to hold panels snugly and allow for easy removal
Flush Wall Mounting – Keeps panels tight to the wall for a polished, seamless finish
Compact and Lightweight – Small size makes them ideal for modular setups or limited space applications
Strong Aluminum Build – Crafted to resist rust, wear, and deformation over time
Versatile Mounting Option – Commonly used for signs, acoustic panels, and architectural wall treatments

Alloy & Temper:6063-T5
Lift Off/Drop:5/8"
Offset/Projection:3/4"
Specification Met:ASTM B221-14
Yield Strength:16k PSI-1
Hardness:Brinell 55
RoHS:RoHS 3 (2017/2102/EU) Compliant
REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:Specialty Metals COTS-Exempt
Country of Origin:United States of America
Materials:See Specification

Aluminium 95.1%

Chromium 0-.1%

Copper 0-0.1%

Iron 0-0.7%

Magnesium 0.45-.90%

Manganese 0-0.10%

Silicon 0.2-0.6%

Titanium 0-0.1%

Zinc 0-0.10%

Other 0.05-0.15%
