Panel Cleat® Patented Locking Aluminum French Cleat – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC638969-72MH

SKU:: ZC638969-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 7/16"
Offset/Projection:: 1/4"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® Patented Locking Aluminum French Cleat – Panel Rail & Z-Clips – 6063-T5 Product Information

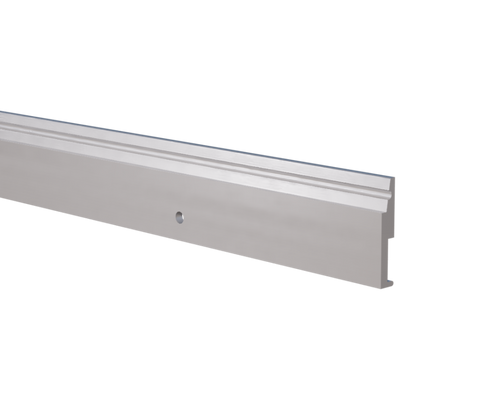

The Locking Panel Cleat® is a patented locking French cleat, extruded in aluminum, that fastens shut once the panel is hung. A screw hole is designed into the profile: after the cleats interlock, a screw driven through it ties the two halves together, so the panel can't be lifted off, bumped loose or shaken free.

Specify it wherever panels need added retention and stability. Use the continuous Panel Rail for full-length retention or precut 2.5" Z-Clips for spot mounting; both share one interlocking profile. Back the screw out and the panel lifts off like a standard cleat for service access.

The profile matches our HD Lite dimensions: 1/4" offset, 1-1/2" height, 5/32" wall and 7/16" lift-off. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability

Alloy & Temper:6063-T5
Lift Off/Drop:7/16"
Offset/Projection:1/4"
Specification Met:ASTM B221-14
Yield Strength:16k PSI-1
Hardness:Brinell 55
RoHS:RoHS 3 (2017/2102/EU) Compliant
REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:Specialty Metals COTS-Exempt
Country of Origin:United States of America
Materials:See Specification

Aluminium 95.1%

Chromium 0-.1%

Copper 0-0.1%

Iron 0-0.7%

Magnesium 0.45-.90%

Manganese 0-0.10%

Silicon 0.2-0.6%

Titanium 0-0.1%

Zinc 0-0.10%

Other 0.05-0.15%
