Panel Cleat® HD Lite Aluminum Z-Clip Mounting Bracket – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC638745-72MH

SKU:: ZC638745-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 7/16"
Offset/Projection:: 1/4"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® HD Lite Aluminum Z-Clip Mounting Bracket – Panel Rail & Z-Clips – 6063-T5 Product Information

The HD Lite Panel Cleat® keeps the 5/32" wall of our HD cleat in a shorter 1-1/2" profile. It suits wall panels, millwork and fixtures that need moderate support, or installs where the full HD height won't fit behind the panel.

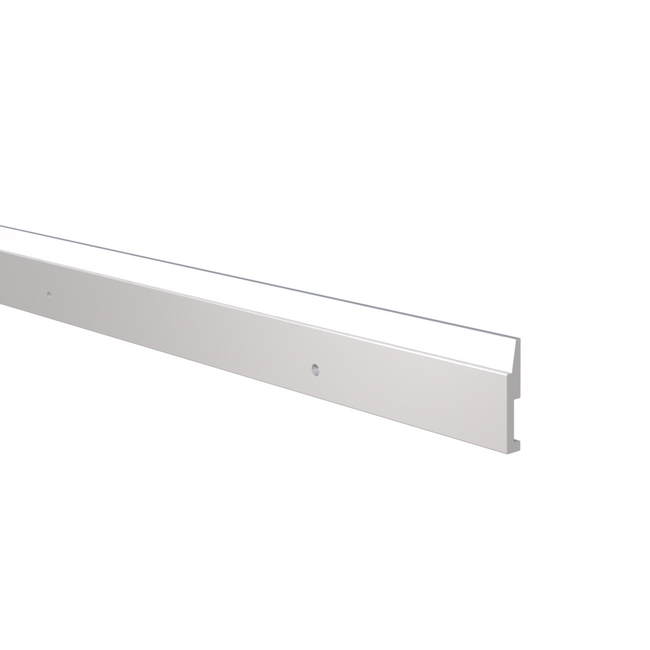

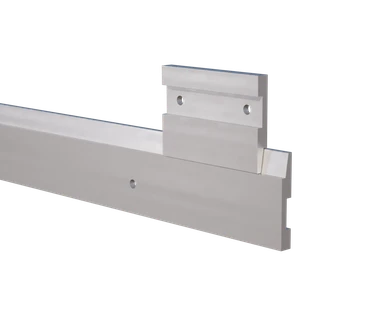

Choose the continuous Panel Rail for full-length support or precut 2.5" Z-Clips for spot mounting. Rail and clips share one interlocking profile and can be mixed on the same install. Attach one piece to the wall, its mate to the panel, and set the panel in place. A 7/16" lift-off lets panels come back off without tools.

The 1/4" offset keeps panels close to the wall. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability

Technical Specifications

Alloy & Temper:6063-T5
Lift Off/Drop:7/16"
Offset/Projection:1/4"
Specification Met:ASTM B221-14
Yield Strength:16k PSI-1
Hardness:Brinell 55
RoHS:RoHS 3 (2017/2102/EU) Compliant
REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:Specialty Metals COTS-Exempt
Country of Origin:United States of America
Materials:See Specification

Aluminium 95.1%

Chromium 0-.1%

Copper 0-0.1%

Iron 0-0.7%

Magnesium 0.45-.90%

Manganese 0-0.10%

Silicon 0.2-0.6%

Titanium 0-0.1%

Zinc 0-0.10%

Other 0.05-0.15%
