Panel Cleat® Williamsburg 1/2" Offset French Cleat Mounting System – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC6310671-72MH

SKU:: ZC6310671-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 7/16"
Offset/Projection:: 1/2"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® Williamsburg 1/2" Offset French Cleat Mounting System – Panel Rail & Z-Clips – 6063-T5 Product Information

The Williamsburg Panel Cleat® is an aluminum French cleat mounting system that stands panels 1/2" off the wall while needing only 7/16" of lift-off. That pairing sets wall panels and millwork farther from the wall and still fits under tight ceilings and trim.

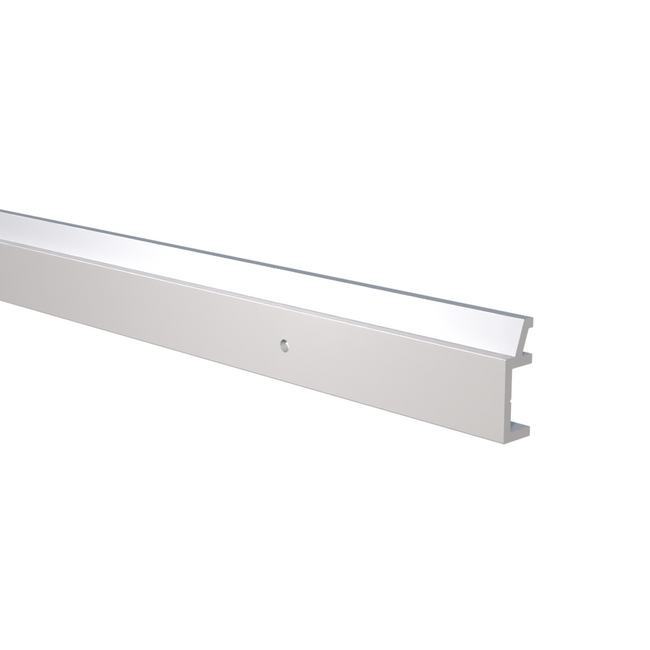

Order the continuous Panel Rail for full-length support or precut 2" Z-Clips for spot mounting. Rail and clips share one interlocking profile and work together on the same install. Attach one piece to the wall and its mate to the panel, then set the panel in place. It lifts off without tools for access.

The extra offset also clears uneven walls, furring and panel backers. A 1/8" wall and 1-1/2" height keep the profile rigid. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability

Alloy & Temper:6063-T5
Lift Off/Drop:7/16"
Offset/Projection:1/2"
Specification Met:ASTM B221-14
Yield Strength:16k PSI-1
Hardness:Brinell 55
RoHS:RoHS 3 (2017/2102/EU) Compliant
REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:Specialty Metals COTS-Exempt
Country of Origin:United States of America
Materials:See Specification

Aluminium 95.1%

Chromium 0-.1%

Copper 0-0.1%

Iron 0-0.7%

Magnesium 0.45-.90%

Manganese 0-0.10%

Silicon 0.2-0.6%

Titanium 0-0.1%

Zinc 0-0.10%

Other 0.05-0.15%
