U Channels

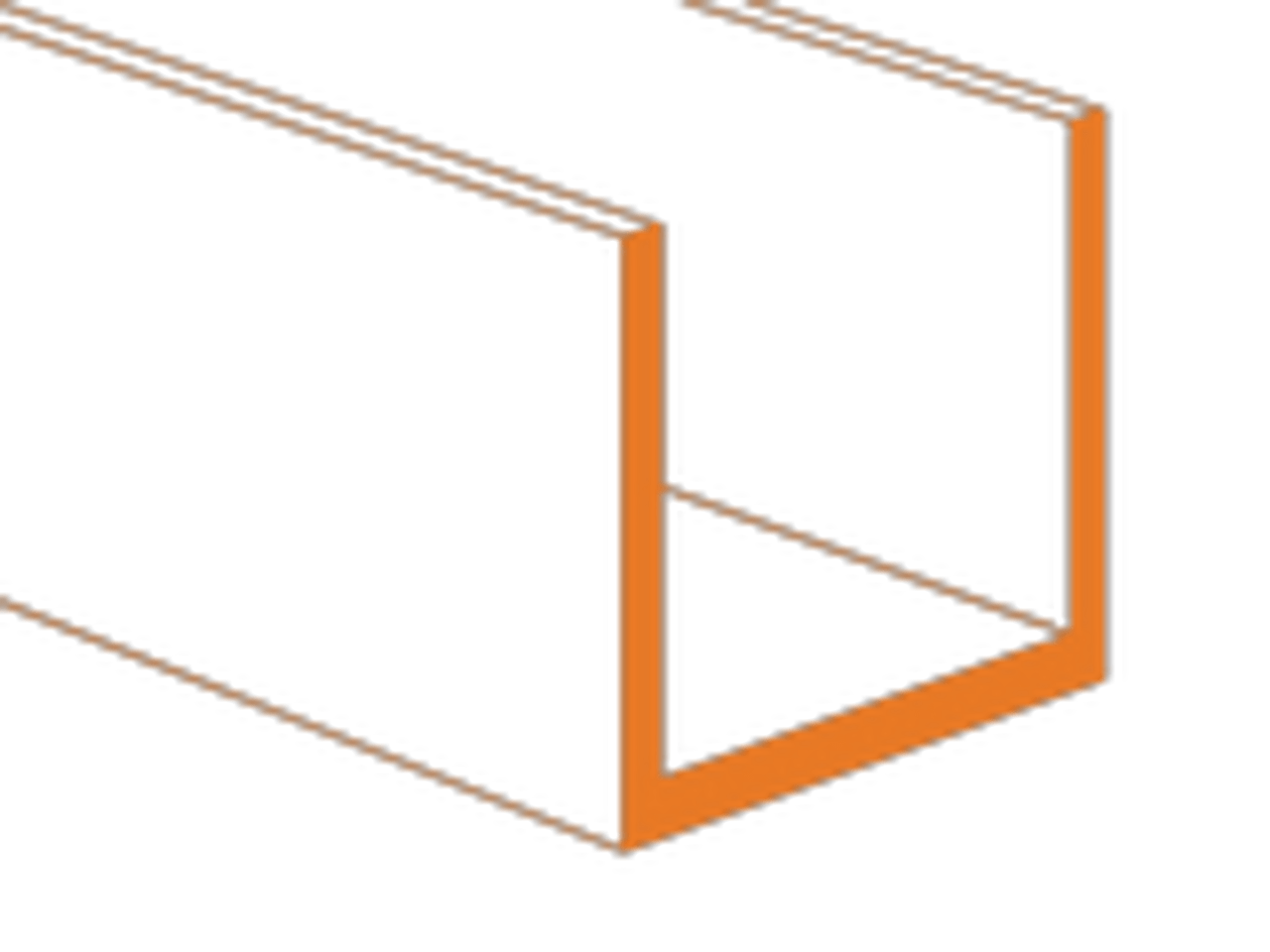

Aluminum U channel is a U-shaped open profile used for framing, track systems, and edge protection, sized by leg height, web width, and wall thickness to match the part or panel it captures. Stocked in 6063-T5 alloy, in mill finish, clear anodized, or black anodized, across standard 4 ft, 6 ft, 8 ft and 12 ft lengths, in dozens of leg-height, web-width, and wall-thickness combinations ranging from 1/16" to 1/4", including a radiused-corner version for a softened edge profile.
Aluminum U Channel 3/4" x 1" x 1/8" – Fits 1/2" – 6063-T5

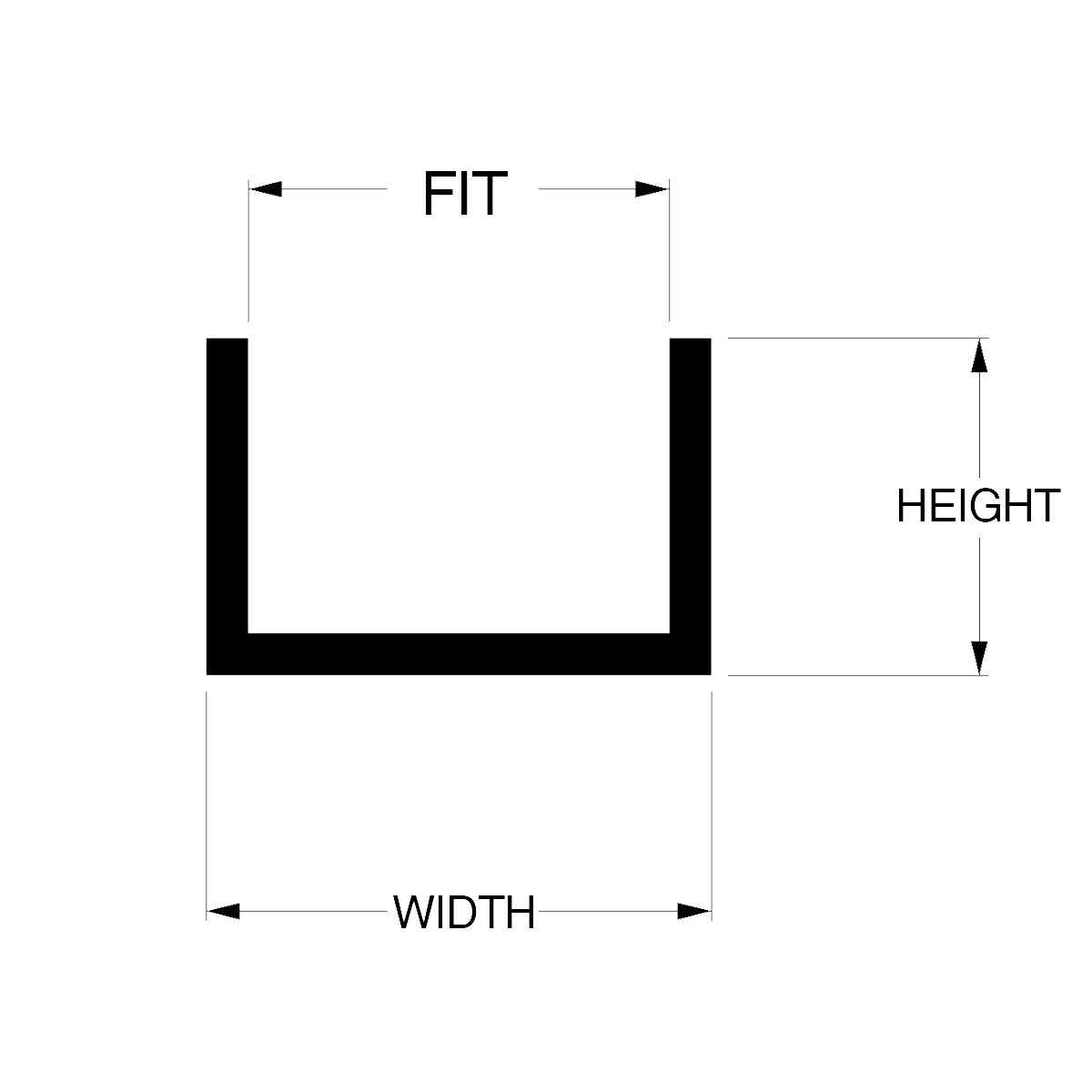

- Height
- 1"
- Width
- 3/4"
- Fit
- 1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6307501000125-48M | Cut Length: 48"; Finish: Mill Finish | $27.01 | In stock |
| C6307501000125-48CA | Cut Length: 48"; Finish: Clear Anodized | $34.24 | In stock |
| C6307501000125-72M | Cut Length: 72"; Finish: Mill Finish | $40.11 | In stock |
| C6307501000125-72CA | Cut Length: 72"; Finish: Clear Anodized | $46.63 | In stock |
| C6307501000125-96M | Cut Length: 96"; Finish: Mill Finish | $53.08 | In stock |
| C6307501000125-96CA | Cut Length: 96"; Finish: Clear Anodized | $60.46 | In stock |
| C6307501000125-144M | Cut Length: 144"; Finish: Mill Finish | $81.79 | In stock |
| C6307501000125-144CA | Cut Length: 144"; Finish: Clear Anodized | $91.04 | In stock |
Aluminum U Channel 5/8" x 7/8" x 1/16" – Fits 1/2" – 6063-T5
- Height
- 7/8"
- Width
- 5/8"
- Fit
- 1/2"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| CR6306250875063-72CA | Cut Length: 72"; Finish: Clear Anodized | $24.89 | In stock |
| CR6306250875063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.40 | In stock |
| CR6306250875063-48CA | Cut Length: 48"; Finish: Clear Anodized | $19.05 | In stock |
| CR6306250875063-96CA | Cut Length: 96"; Finish: Clear Anodized | $30.98 | In stock |
Aluminum U Channel 1-1/8" x 1/2" x 1/16" – Fits 1" – 6063-T5
- Height
- 1/2"
- Width
- 1-1/8"
- Fit
- 1"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6311250500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $24.83 | In stock |
| C6311250500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.29 | In stock |
| C6311250500063-48M | Cut Length: 48"; Finish: Mill Finish | $11.47 | In stock |
| C6311250500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $17.02 | In stock |
| C6311250500063-72M | Cut Length: 72"; Finish: Mill Finish | $15.77 | In stock |
| C6311250500063-96M | Cut Length: 96"; Finish: Mill Finish | $21.23 | In stock |
| C6311250500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $28.60 | In stock |
| C6311250500063-144M | Cut Length: 144"; Finish: Mill Finish | $34.06 | In stock |
Aluminum U Channel 1" x 2" x 1/8" – Fits 3/4" – 6063-T5
- Height
- 2"
- Width
- 1"
- Fit
- 3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310002000125-48M | Cut Length: 48"; Finish: Mill Finish | $57.27 | In stock |
| C6310002000125-72M | Cut Length: 72"; Finish: Mill Finish | $88.00 | In stock |
| C6310002000125-144M | Cut Length: 144"; Finish: Mill Finish | $203.54 | In stock |
| C6310002000125-96M | Cut Length: 96"; Finish: Mill Finish | $106.05 | In stock |
Aluminum U Channel 3/4" x 1/2" x 1/16" – Fits 5/8" – 6063-T5
- Height
- 1/2"
- Width
- 3/4"
- Fit
- 5/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6307500500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $19.97 | In stock |
| C6307500500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $36.72 | In stock |
| C6307500500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $14.63 | In stock |
| C6307500500063-48M | Cut Length: 48"; Finish: Mill Finish | $8.51 | In stock |
| C6307500500063-72M | Cut Length: 72"; Finish: Mill Finish | $12.27 | In stock |
| C6307500500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $25.19 | In stock |
| C6307500500063-144M | Cut Length: 144"; Finish: Mill Finish | $22.79 | In stock |
Aluminum U Channel 11/16" x 1/2" x 1/16" – Fits 9/16" – 6063-T5
- Height
- 1/2"
- Width
- 11/16"
- Fit
- 9/16"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6306880500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $20.43 | In stock |
| C6306880500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $34.68 | In stock |
| C6306880500063-48M | Cut Length: 48"; Finish: Mill Finish | $9.24 | In stock |
| C6306880500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $15.89 | In stock |
| C6306880500063-72M | Cut Length: 72"; Finish: Mill Finish | $13.28 | In stock |
| C6306880500063-96M | Cut Length: 96"; Finish: Mill Finish | $17.00 | In stock |
| C6306880500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $25.10 | In stock |
| C6306880500063-144M | Cut Length: 144"; Finish: Mill Finish | $24.52 | In stock |
Aluminum U Channel 1-1/2" x 3/4" x 1/16" – Fits 1-3/8" – 6063-T5
- Height
- 3/4"
- Width
- 1-1/2"
- Fit
- 1-3/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6315000750063-72CA | Cut Length: 72"; Finish: Clear Anodized | $30.98 | In stock |
| C6315000750063-144CA | Cut Length: 144"; Finish: Clear Anodized | $50.25 | In stock |
| C6315000750063-48CA | Cut Length: 48"; Finish: Clear Anodized | $19.57 | In stock |
| C6315000750063-48M | Cut Length: 48"; Finish: Mill Finish | $15.31 | In stock |
| C6315000750063-72M | Cut Length: 72"; Finish: Mill Finish | $22.08 | In stock |
| C6315000750063-96CA | Cut Length: 96"; Finish: Clear Anodized | $37.70 | In stock |
| C6315000750063-96M | Cut Length: 96"; Finish: Mill Finish | $30.33 | In stock |
| C6315000750063-144M | Cut Length: 144"; Finish: Mill Finish | $41.00 | In stock |
Aluminum U Channel 2" x 3/4" x 1/16" – Fits 1-7/8" – 6063-T5
- Height
- 3/4"
- Width
- 2"
- Fit
- 1-7/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6320000750063-72CA | Cut Length: 72"; Finish: Clear Anodized | $34.08 | In stock |
| C6320000750063-144CA | Cut Length: 144"; Finish: Clear Anodized | $60.47 | In stock |
| C6320000750063-48CA | Cut Length: 48"; Finish: Clear Anodized | $26.39 | In stock |
| C6320000750063-48M | Cut Length: 48"; Finish: Mill Finish | $19.12 | In stock |
| C6320000750063-72M | Cut Length: 72"; Finish: Mill Finish | $27.58 | In stock |
| C6320000750063-96CA | Cut Length: 96"; Finish: Clear Anodized | $42.78 | In stock |
| C6320000750063-96M | Cut Length: 96"; Finish: Mill Finish | $35.41 | In stock |
| C6320000750063-144M | Cut Length: 144"; Finish: Mill Finish | $51.22 | In stock |
Aluminum U Channel 1/2" x 1/2" x 1/16" – Fits 3/8" – 6063-T5
- Height
- 1/2"
- Width
- 1/2"
- Fit
- 3/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6305000500063-48M | Cut Length: 48"; Finish: Mill Finish | $8.31 | In stock |
| C6305000500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $15.33 | In stock |
| C6305000500063-72M | Cut Length: 72"; Finish: Mill Finish | $11.39 | In stock |
| C6305000500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $20.39 | In stock |
| C6305000500063-96M | Cut Length: 96"; Finish: Mill Finish | $15.29 | In stock |
| C6305000500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $23.37 | In stock |
| C6305000500063-144M | Cut Length: 144"; Finish: Mill Finish | $24.46 | In stock |
| C6305000500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $34.61 | In stock |
Aluminum U Channel 1" x 1" x 1/16" – Fits 7/8" – 6063-T5
- Height
- 1"
- Width
- 1"
- Fit
- 7/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310001000063-48M | Cut Length: 48"; Finish: Mill Finish | $15.31 | In stock |
| C6310001000063-48CA | Cut Length: 48"; Finish: Clear Anodized | $21.95 | In stock |
| C6310001000063-72M | Cut Length: 72"; Finish: Mill Finish | $22.09 | In stock |
| C6310001000063-72CA | Cut Length: 72"; Finish: Clear Anodized | $30.99 | In stock |
| C6310001000063-96M | Cut Length: 96"; Finish: Mill Finish | $30.34 | In stock |
| C6310001000063-96CA | Cut Length: 96"; Finish: Clear Anodized | $37.71 | In stock |
| C6310001000063-144M | Cut Length: 144"; Finish: Mill Finish | $41.02 | In stock |
| C6310001000063-144CA | Cut Length: 144"; Finish: Clear Anodized | $60.29 | In stock |
Aluminum U Channel 1-3/4" x 13/16" x 1/16" – Fits 1-5/8" – 6063-T5
- Height
- 13/16"
- Width
- 1-3/4"
- Fit
- 1-5/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6317500813063-72CA | Cut Length: 72"; Finish: Clear Anodized | $34.44 | In stock |
| C6317500813063-144CA | Cut Length: 144"; Finish: Clear Anodized | $61.11 | In stock |
| C6317500813063-48CA | Cut Length: 48"; Finish: Clear Anodized | $24.94 | In stock |
| C6317500813063-48M | Cut Length: 48"; Finish: Mill Finish | $17.67 | In stock |
| C6317500813063-72M | Cut Length: 72"; Finish: Mill Finish | $27.56 | In stock |
| C6317500813063-96CA | Cut Length: 96"; Finish: Clear Anodized | $43.23 | In stock |
| C6317500813063-96M | Cut Length: 96"; Finish: Mill Finish | $35.39 | In stock |
| C6317500813063-144M | Cut Length: 144"; Finish: Mill Finish | $51.19 | In stock |
Aluminum U Channel 1/2" x 1" x 1/8" – Fits 1/4" – 6063-T5
- Height
- 1"
- Width
- 1/2"
- Fit
- 1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6305001000125-72CA | Cut Length: 72"; Finish: Clear Anodized | $43.27 | In stock |
| C6305001000125-144CA | Cut Length: 144"; Finish: Clear Anodized | $77.51 | In stock |
| C6305001000125-48M | Cut Length: 48"; Finish: Mill Finish | $25.48 | In stock |
| C6305001000125-48CA | Cut Length: 48"; Finish: Clear Anodized | $32.53 | In stock |
| C6305001000125-72M | Cut Length: 72"; Finish: Mill Finish | $36.75 | In stock |
| C6305001000125-96M | Cut Length: 96"; Finish: Mill Finish | $47.19 | In stock |
| C6305001000125-96CA | Cut Length: 96"; Finish: Clear Anodized | $54.57 | In stock |
| C6305001000125-144M | Cut Length: 144"; Finish: Mill Finish | $68.26 | In stock |
Aluminum Radiused U Channel 3/4" x 3/4" x 1/8" – Fits 1/2" – 1/8" Radius – 6063-T5
- Height
- 3/4"
- Width
- 3/4"
- Fit
- 1/2"
- Radius
- 1/8"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| CR6307500750125-72CA | Cut Length: 72"; Finish: Clear Anodized | $43.18 | In stock |
| CR6307500750125-144CA | Cut Length: 144"; Finish: Clear Anodized | $77.35 | In stock |
| CR6307500750125-72M | Cut Length: 72"; Finish: Mill Finish | $31.52 | In stock |
| CR6307500750125-96CA | Cut Length: 96"; Finish: Clear Anodized | $49.83 | In stock |
| CR6307500750125-144M | Cut Length: 144"; Finish: Mill Finish | $68.10 | In stock |
| CR6307500750125-48M | Cut Length: 48"; Finish: Mill Finish | $22.93 | In stock |
| CR6307500750125-48CA | Cut Length: 48"; Finish: Clear Anodized | $28.50 | In stock |
Aluminum U Channel 1" x 1/2" x 1/8" – Fits 3/4" – 6063-T5
- Height
- 1/2"
- Width
- 1"
- Fit
- 3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310000500125-48M | Cut Length: 48"; Finish: Mill Finish | $19.13 | In stock |
| C6310000500125-96M | Cut Length: 96"; Finish: Mill Finish | $35.42 | In stock |
| C6310000500125-72M | Cut Length: 72"; Finish: Mill Finish | $27.59 | In stock |
| C6310000500125-144M | Cut Length: 144"; Finish: Mill Finish | $51.23 | In stock |
Aluminum U Channel 1" x 1/2" x 1/16" – Fits 7/8" – 6063-T5
- Height
- 1/2"
- Width
- 1"
- Fit
- 7/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310000500063-48M | Cut Length: 48"; Finish: Mill Finish | $10.43 | In stock |
| C6310000500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $17.01 | In stock |
| C6310000500063-72M | Cut Length: 72"; Finish: Mill Finish | $15.75 | In stock |
| C6310000500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $22.24 | In stock |
| C6310000500063-96M | Cut Length: 96"; Finish: Mill Finish | $21.21 | In stock |
| C6310000500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $28.57 | In stock |
| C6310000500063-144M | Cut Length: 144"; Finish: Mill Finish | $34.02 | In stock |
| C6310000500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.26 | In stock |
Aluminum U Channel 3/8" x 1/2" x 1/16" – Fits 1/4" – 6063-T5
- Height
- 1/2"
- Width
- 3/8"
- Fit
- 1/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6303750500063-72CA | Cut Length: 72"; Finish: Clear Anodized | $18.50 | In stock |
| C6303750500063-144CA | Cut Length: 144"; Finish: Clear Anodized | $34.58 | In stock |
| C6303750500063-48CA | Cut Length: 48"; Finish: Clear Anodized | $14.41 | In stock |
| C6303750500063-96CA | Cut Length: 96"; Finish: Clear Anodized | $23.35 | In stock |
| C6303750500063-48M | Cut Length: 48"; Finish: Mill Finish | $7.56 | In stock |
| C6303750500063-72M | Cut Length: 72"; Finish: Mill Finish | $11.37 | In stock |
| C6303750500063-96M | Cut Length: 96"; Finish: Mill Finish | $15.27 | In stock |
| C6303750500063-144M | Cut Length: 144"; Finish: Mill Finish | $24.43 | In stock |
Aluminum Radiused U Channel 2" x 2" x 1/8" – Fits 1-3/4" – 1/8" Radius – 6063-T5
- Height
- 2"
- Width
- 2"
- Fit
- 1-3/4"
- Radius
- 1/8"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| CR6320002000125-72CA | Cut Length: 72"; Finish: Clear Anodized | $119.84 | In stock |
| CR6320002000125-144CA | Cut Length: 144"; Finish: Clear Anodized | $219.55 | In stock |
| CR6320002000125-48CA | Cut Length: 48"; Finish: Clear Anodized | $84.21 | In stock |
| CR6320002000125-96CA | Cut Length: 96"; Finish: Clear Anodized | $152.83 | In stock |
Aluminum U Channel 3/8" x 3/8" x 1/16" – Fits 1/4" – 6063-T5
- Height
- 3/8"
- Width
- 3/8"
- Fit
- 1/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6303750375063-48M | Cut Length: 48"; Finish: Mill Finish | $6.29 | In stock |
| C6303750375063-48CA | Cut Length: 48"; Finish: Clear Anodized | $13.00 | In stock |
| C6303750375063-72M | Cut Length: 72"; Finish: Mill Finish | $8.62 | In stock |
| C6303750375063-72CA | Cut Length: 72"; Finish: Clear Anodized | $17.05 | In stock |
| C6303750375063-96M | Cut Length: 96"; Finish: Mill Finish | $11.57 | In stock |
| C6303750375063-96CA | Cut Length: 96"; Finish: Clear Anodized | $19.51 | In stock |
| C6303750375063-144M | Cut Length: 144"; Finish: Mill Finish | $18.50 | In stock |
| C6303750375063-144CA | Cut Length: 144"; Finish: Clear Anodized | $28.44 | In stock |
Aluminum U Channel 3/8" x 7/16" x 1/16" – Fits 1/4" – 6063-T5
- Height
- 7/16"
- Width
- 3/8"
- Fit
- 1/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6303750438063-72CA | Cut Length: 72"; Finish: Clear Anodized | $17.07 | In stock |
| C6303750438063-144CA | Cut Length: 144"; Finish: Clear Anodized | $28.48 | In stock |
| C6303750438063-48M | Cut Length: 48"; Finish: Mill Finish | $6.98 | In stock |
| C6303750438063-48CA | Cut Length: 48"; Finish: Clear Anodized | $13.42 | In stock |
| C6303750438063-72M | Cut Length: 72"; Finish: Mill Finish | $10.04 | In stock |
| C6303750438063-96M | Cut Length: 96"; Finish: Mill Finish | $12.85 | In stock |
| C6303750438063-96CA | Cut Length: 96"; Finish: Clear Anodized | $20.80 | In stock |
| C6303750438063-144M | Cut Length: 144"; Finish: Mill Finish | $18.53 | In stock |
Aluminum U Channel 3/8" x 15/16" x 1/16" – Fits 1/4" – 6063-T5
- Height
- 15/16"
- Width
- 3/8"
- Fit
- 1/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6303900938063-72CA | Cut Length: 72"; Finish: Clear Anodized | $24.85 | In stock |
| C6303900938063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.32 | In stock |
| C6303900938063-48CA | Cut Length: 48"; Finish: Clear Anodized | $18.28 | In stock |
| C6303900938063-48M | Cut Length: 48"; Finish: Mill Finish | $11.48 | In stock |
| C6303900938063-72M | Cut Length: 72"; Finish: Mill Finish | $18.35 | In stock |
| C6303900938063-96CA | Cut Length: 96"; Finish: Clear Anodized | $33.82 | In stock |
| C6303900938063-96M | Cut Length: 96"; Finish: Mill Finish | $21.25 | In stock |
| C6303900938063-144M | Cut Length: 144"; Finish: Mill Finish | $34.08 | In stock |
Aluminum U Channel 1/2" x 5/16" x 1/16" – Fits 3/8" – 6063-T5
- Height
- 5/16"
- Width
- 1/2"
- Fit
- 3/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6305000313063-72CA | Cut Length: 72"; Finish: Clear Anodized | $17.04 | In stock |
| C6305000313063-144CA | Cut Length: 144"; Finish: Clear Anodized | $28.43 | In stock |
| C6305000313063-48CA | Cut Length: 48"; Finish: Clear Anodized | $12.32 | In stock |
| C6305000313063-48M | Cut Length: 48"; Finish: Mill Finish | $6.28 | In stock |
| C6305000313063-72M | Cut Length: 72"; Finish: Mill Finish | $8.61 | In stock |
| C6305000313063-96CA | Cut Length: 96"; Finish: Clear Anodized | $19.51 | In stock |
| C6305000313063-96M | Cut Length: 96"; Finish: Mill Finish | $11.56 | In stock |
| C6305000313063-144M | Cut Length: 144"; Finish: Mill Finish | $18.49 | In stock |
Aluminum U Channel 5/8" x 9/16" x 1/16" – Fits 1/2" – 6063-T5
- Height
- 9/16"
- Width
- 5/8"
- Fit
- 1/2"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6306250563063-72CA | Cut Length: 72"; Finish: Clear Anodized | $21.63 | In stock |
| C6306250563063-144CA | Cut Length: 144"; Finish: Clear Anodized | $39.54 | In stock |
| C6306250563063-72M | Cut Length: 72"; Finish: Mill Finish | $13.29 | In stock |
| C6306250563063-96M | Cut Length: 96"; Finish: Mill Finish | $17.02 | In stock |
| C6306250563063-96CA | Cut Length: 96"; Finish: Clear Anodized | $27.21 | In stock |
| C6306250563063-144M | Cut Length: 144"; Finish: Mill Finish | $24.54 | In stock |
| C6306250563063-48M | Cut Length: 48"; Finish: Mill Finish | $9.25 | In stock |
| C6306250563063-48CA | Cut Length: 48"; Finish: Clear Anodized | $15.90 | In stock |
Aluminum U Channel 7/8" x 5/16" x 1/16" – Fits 3/4" – 6063-T5
- Height
- 5/16"
- Width
- 7/8"
- Fit
- 3/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6308750313063-72CA | Cut Length: 72"; Finish: Clear Anodized | $18.83 | In stock |
| C6308750313063-144CA | Cut Length: 144"; Finish: Clear Anodized | $32.14 | In stock |
| C6308750313063-48CA | Cut Length: 48"; Finish: Clear Anodized | $14.11 | In stock |
| C6308750313063-48M | Cut Length: 48"; Finish: MIll Finish | $7.65 | In stock |
| C6308750313063-72M | Cut Length: 72"; Finish: MIll Finish | $10.51 | In stock |
| C6308750313063-96CA | Cut Length: 96"; Finish: Clear Anodized | $21.64 | In stock |
| C6308750313063-96M | Cut Length: 96"; Finish: MIll Finish | $14.16 | In stock |
| C6308750313063-144M | Cut Length: 144"; Finish: MIll Finish | $22.71 | In stock |
Aluminum U Channel 1" x 3/4" x 1/8" – Fits 3/4" – 6063-T5
- Height
- 3/4"
- Width
- 1"
- Fit
- 3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310000750125-48M | Cut Length: 48"; Finish: Mill Finish | $25.48 | In stock |
| C6310000750125-48CA | Cut Length: 48"; Finish: Clear Anodized | $32.53 | In stock |
| C6310000750125-72M | Cut Length: 72"; Finish: Mill Finish | $36.75 | In stock |
| C6310000750125-72CA | Cut Length: 72"; Finish: Clear Anodized | $43.27 | In stock |
| C6310000750125-96M | Cut Length: 96"; Finish: Mill Finish | $47.19 | In stock |
| C6310000750125-96CA | Cut Length: 96"; Finish: Clear Anodized | $54.57 | In stock |
| C6310000750125-144M | Cut Length: 144"; Finish: Mill Finish | $68.26 | In stock |
| C6310000750125-144CA | Cut Length: 144"; Finish: Clear Anodized | $77.51 | In stock |
Aluminum U Channel 1-1/8" x 13/16" x 1/16" – Fits 1" – 6063-T5
- Height
- 13/16"
- Width
- 1-1/8"
- Fit
- 1"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6311250813063-72CA | Cut Length: 72"; Finish: Clear Anodized | $28.54 | In stock |
| C6311250813063-144CA | Cut Length: 144"; Finish: Clear Anodized | $50.17 | In stock |
| C6311250813063-72M | Cut Length: 72"; Finish: Mill Finish | $20.07 | In stock |
| C6311250813063-48CA | Cut Length: 48"; Finish: Clear Anodized | $20.84 | In stock |
| C6311250813063-48M | Cut Length: 48"; Finish: Mill Finish | $14.34 | In stock |
| C6311250813063-96CA | Cut Length: 96"; Finish: Clear Anodized | $33.93 | In stock |
| C6311250813063-96M | Cut Length: 96"; Finish: Mill Finish | $26.56 | In stock |
| C6311250813063-144M | Cut Length: 144"; Finish: Mill Finish | $40.93 | In stock |
Aluminum U Channel 7/8" x 3/4" x 1/16" – Fits 3/4" – 6063-T5
- Height
- 3/4"
- Width
- 7/8"
- Fit
- 3/4"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6308750750063-48M | Cut Length: 48"; Finish: Mill Finish | $12.74 | In stock |
| C6308750750063-96M | Cut Length: 96"; Finish: Mill Finish | $23.59 | In stock |
| C6308750750063-48CA | Cut Length: 48"; Finish: Clear Anodized | $19.03 | In stock |
| C6308750750063-72M | Cut Length: 72"; Finish: Mill Finish | $18.38 | In stock |
| C6308750750063-72CA | Cut Length: 72"; Finish: Clear Anodized | $24.87 | In stock |
| C6308750750063-96CA | Cut Length: 96"; Finish: Clear Anodized | $30.96 | In stock |
| C6308750750063-144M | Cut Length: 144"; Finish: Mill Finish | $34.13 | In stock |
| C6308750750063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.37 | In stock |
Aluminum U Channel 1/2" x 3/4" x 1/16" – Fits 3/8" – 6063-T5
- Height
- 3/4"
- Width
- 1/2"
- Fit
- 3/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6305000750063-48M | Cut Length: 48"; Finish: Mill Finish | $10.43 | In stock |
| C6305000750063-96M | Cut Length: 96"; Finish: Mill Finish | $21.20 | In stock |
| C6305000750063-48CA | Cut Length: 48"; Finish: Clear Anodized | $17.00 | In stock |
| C6305000750063-96CA | Cut Length: 96"; Finish: Clear Anodized | $28.56 | In stock |
| C6305000750063-72M | Cut Length: 72"; Finish: Mill Finish | $15.74 | In stock |
| C6305000750063-72CA | Cut Length: 72"; Finish: Clear Anodized | $22.23 | In stock |
| C6305000750063-144M | Cut Length: 144"; Finish: Mill Finish | $34.01 | In stock |
| C6305000750063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.24 | In stock |
Aluminum U Channel 3/4" x 3/4" x 1/16" – Fits 5/8" – 6063-T5
- Height
- 3/4"
- Width
- 3/4"
- Fit
- 5/8"
- Wall Thickness
- 1/16"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6307500750063-48M | Cut Length: 48"; Finish: Mill Finish | $11.48 | In stock |
| C6307500750063-96M | Cut Length: 96"; Finish: Mill Finish | $21.26 | In stock |
| C6307500750063-48CA | Cut Length: 48"; Finish: Clear Anodized | $18.29 | In stock |
| C6307500750063-96CA | Cut Length: 96"; Finish: Clear Anodized | $33.82 | In stock |
| C6307500750063-144M | Cut Length: 144"; Finish: Mill Finish | $34.09 | In stock |
| C6307500750063-144CA | Cut Length: 144"; Finish: Clear Anodized | $43.33 | In stock |
| C6307500750063-72M | Cut Length: 72"; Finish: Mill Finish | $18.36 | In stock |
| C6307500750063-72CA | Cut Length: 72"; Finish: Clear Anodized | $24.85 | In stock |
Aluminum U Channel 1-1/4" x 1-1/4" x 1/8" – Fits 1" – 6063-T5
- Height
- 1-1/4"
- Width
- 1-1/4"
- Fit
- 1"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6312501250125-48M | Cut Length: 48"; Finish: Mill Finish | $38.26 | In stock |
| C6312501250125-96M | Cut Length: 96"; Finish: Mill Finish | $70.84 | In stock |
| C6312501250125-72M | Cut Length: 72"; Finish: Mill Finish | $55.18 | In stock |
| C6312501250125-144M | Cut Length: 144"; Finish: Mill Finish | $102.47 | In stock |
Aluminum U Channel 1-3/4" x 3/4" x 1/8" – Fits 1-1/2" – 6063-T5
- Height
- 3/4"
- Width
- 1-3/4"
- Fit
- 1-1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6317500750125-48M | Cut Length: 48"; Finish: Mill Finish | $32.79 | In stock |
| C6317500750125-96M | Cut Length: 96"; Finish: Mill Finish | $60.72 | In stock |
| C6317500750125-72M | Cut Length: 72"; Finish: Mill Finish | $49.01 | In stock |
| C6317500750125-144M | Cut Length: 144"; Finish: Mill Finish | $102.16 | In stock |
Aluminum U Channel 1-3/4" x 1" x 1/8" – Fits 1-1/2" – 6063-T5
- Height
- 1"
- Width
- 1-3/4"
- Fit
- 1-1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6317501000125-48M | Cut Length: 48"; Finish: Mill Finish | $38.26 | In stock |
| C6317501000125-96M | Cut Length: 96"; Finish: Mill Finish | $70.84 | In stock |
| C6317501000125-72M | Cut Length: 72"; Finish: Mill Finish | $55.18 | In stock |
| C6317501000125-144M | Cut Length: 144"; Finish: Mill Finish | $102.47 | In stock |
Aluminum U Channel 2" x 1/2" x 1/8" – Fits 1-3/4" – 6063-T5
- Height
- 1/2"
- Width
- 2"
- Fit
- 1-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6320000500125-48M | Cut Length: 48"; Finish: Mill Finish | $30.59 | In stock |
| C6320000500125-96M | Cut Length: 96"; Finish: Mill Finish | $60.61 | In stock |
| C6320000500125-72M | Cut Length: 72"; Finish: Mill Finish | $44.12 | In stock |
| C6320000500125-144M | Cut Length: 144"; Finish: Mill Finish | $81.94 | In stock |
Aluminum U Channel 3" x 1" x 1/8" – Fits 2-3/4" – 6063-T5
- Height
- 1"
- Width
- 3"
- Fit
- 2-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- 7 - 11
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6330001000125-48M | Cut Length: 48"; Finish: Mill Finish | $45.97 | In stock |
| C6330001000125-96M | Cut Length: 96"; Finish: Mill Finish | $85.14 | In stock |
| C6330001000125-72M | Cut Length: 72"; Finish: Mill Finish | $66.31 | In stock |
| C6330001000125-144M | Cut Length: 144"; Finish: Mill Finish | $123.15 | In stock |
Aluminum U Channel 3/4" x 3/8" x 1/8" – Fits 1/2" – 6063-T5
- Height
- 3/8"
- Width
- 3/4"
- Fit
- 1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6307500375125-48M | Cut Length: 48"; Finish: Mill Finish | $13.50 | In stock |
| C6307500375125-96M | Cut Length: 96"; Finish: Mill Finish | $26.54 | In stock |
| C6307500375125-72M | Cut Length: 72"; Finish: Mill Finish | $20.05 | In stock |
| C6307500375125-144M | Cut Length: 144"; Finish: Mill Finish | $40.89 | In stock |
Aluminum U Channel 1-1/2" x 1/2" x 1/8" – Fits 1-1/4" – 6063-T5
- Height
- 1/2"
- Width
- 1-1/2"
- Fit
- 1-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6315000500125-48M | Cut Length: 48"; Finish: Mill Finish | $25.48 | In stock |
| C6315000500125-96M | Cut Length: 96"; Finish: Mill Finish | $47.19 | In stock |
| C6315000500125-72M | Cut Length: 72"; Finish: Mill Finish | $36.76 | In stock |
| C6315000500125-144M | Cut Length: 144"; Finish: Mill Finish | $68.26 | In stock |
Aluminum U Channel 1" x 1-1/2" x 1/8" – Fits 3/4" – 6063-T5
- Height
- 1-1/2"
- Width
- 1"
- Fit
- 3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6310001500125-48M | Cut Length: 48"; Finish: Mill Finish | $41.72 | In stock |
| C6310001500125-96M | Cut Length: 96"; Finish: Mill Finish | $84.82 | In stock |
| C6310001500125-48CA | Cut Length: 48"; Finish: Clear Anodized | $52.14 | In stock |
| C6310001500125-48BA | Cut Length: 48"; Finish: Black Anodized | $46.91 | In stock |
| C6310001500125-96CA | Cut Length: 96"; Finish: Clear Anodized | $93.55 | In stock |
| C6310001500125-96BA | Cut Length: 96"; Finish: Black Anodized | $85.23 | In stock |
| C6310001500125-144M | Cut Length: 144"; Finish: Mill Finish | $136.06 | In stock |
| C6310001500125-144BA | Cut Length: 144"; Finish: Black Anodized | $133.99 | In stock |
| C6310001500125-72M | Cut Length: 72"; Finish: Mill Finish | $62.97 | In stock |
| C6310001500125-72CA | Cut Length: 72"; Finish: Clear Anodized | $70.56 | In stock |
| C6310001500125-72BA | Cut Length: 72"; Finish: Black Anodized | $64.10 | In stock |
Aluminum U Channel 2" x 1" x 1/8" – Fits 1-3/4" – 6063-T5
- Height
- 1"
- Width
- 2"
- Fit
- 1-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6320001000125-48M | Cut Length: 48"; Finish: Mill Finish | $41.72 | In stock |
| C6320001000125-96M | Cut Length: 96"; Finish: Mill Finish | $84.82 | In stock |
| C6320001000125-96CA | Cut Length: 96"; Finish: Clear Anodized | $93.55 | In stock |
| C6320001000125-144M | Cut Length: 144"; Finish: Mill Finish | $136.06 | In stock |
| C6320001000125-144CA | Cut Length: 144"; Finish: Clear Anodized | $147.24 | In stock |
| C6320001000125-72M | Cut Length: 72"; Finish: Mill Finish | $62.97 | In stock |
Aluminum U Channel 1-1/4" x 1" x 1/8" – Fits 1" – 6063-T5
- Height
- 1"
- Width
- 1-1/4"
- Fit
- 1"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6312501000125-48M | Cut Length: 48"; Finish: Mill Finish | $32.79 | In stock |
| C6312501000125-96M | Cut Length: 96"; Finish: Mill Finish | $60.72 | In stock |
| C6312501000125-72M | Cut Length: 72"; Finish: Mill Finish | $49.01 | In stock |
| C6312501000125-144M | Cut Length: 144"; Finish: Mill Finish | $102.16 | In stock |
Aluminum U Channel 1-1/2" x 1" x 1/8" – Fits 1-1/4" – 6063-T5
- Height
- 1"
- Width
- 1-1/2"
- Fit
- 1-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6315001000125-48M | Cut Length: 48"; Finish: Mill Finish | $35.31 | In stock |
| C6315001000125-96M | Cut Length: 96"; Finish: Mill Finish | $70.73 | In stock |
| C6315001000125-72M | Cut Length: 72"; Finish: Mill Finish | $55.09 | In stock |
| C6315001000125-144M | Cut Length: 144"; Finish: Mill Finish | $102.31 | In stock |
Aluminum U Channel 1-1/2" x 1-1/2" x 1/8" – Fits 1-1/4" – 6063-T5
- Height
- 1-1/2"
- Width
- 1-1/2"
- Fit
- 1-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6315001500125-48M | Cut Length: 48"; Finish: Mill Finish | $45.92 | In stock |
| C6315001500125-96M | Cut Length: 96"; Finish: Mill Finish | $85.03 | In stock |
| C6315001500125-144M | Cut Length: 144"; Finish: Mill Finish | $136.36 | In stock |
| C6315001500125-72M | Cut Length: 72"; Finish: Mill Finish | $73.42 | In stock |
Aluminum U Channel 1-3/4" x 1-3/4" x 1/8" – Fits 1-1/2" – 6063-T5
- Height
- 1-3/4"
- Width
- 1-3/4"
- Fit
- 1-1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6317501750125-48M | Cut Length: 48"; Finish: Mill Finish | $57.32 | In stock |
| C6317501750125-96M | Cut Length: 96"; Finish: Mill Finish | $106.15 | In stock |
| C6317501750125-72M | Cut Length: 72"; Finish: Mill Finish | $88.08 | In stock |
| C6317501750125-144M | Cut Length: 144"; Finish: Mill Finish | $203.69 | In stock |
Aluminum U Channel 2" x 1-1/2" x 1/8" – Fits 1-3/4" – 6063-T5
- Height
- 1-1/2"
- Width
- 2"
- Fit
- 1-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6320001500125-48M | Cut Length: 48"; Finish: Mill Finish | $57.27 | In stock |
| C6320001500125-96M | Cut Length: 96"; Finish: Mill Finish | $106.05 | In stock |
| C6320001500125-72M | Cut Length: 72"; Finish: Mill Finish | $88.00 | In stock |
| C6320001500125-144M | Cut Length: 144"; Finish: Mill Finish | $203.54 | In stock |
Aluminum U Channel 3" x 2" x 1/8" – Fits 2-3/4" – 6063-T5
- Height
- 2"
- Width
- 3"
- Fit
- 2-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6330002000125-48M | Cut Length: 48"; Finish: Mill Finish | $65.32 | In stock |
| C6330002000125-96M | Cut Length: 96"; Finish: Mill Finish | $120.96 | In stock |
| C6330002000125-72M | Cut Length: 72"; Finish: Mill Finish | $94.21 | In stock |
| C6330002000125-144M | Cut Length: 144"; Finish: Mill Finish | $174.96 | In stock |
Aluminum U Channel 3-1/2" x 1" x 1/8" – Fits 3-1/4" – 6063-T5
- Height
- 1"
- Width
- 3-1/2"
- Fit
- 3-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6335001000125-48M | Cut Length: 48"; Finish: Mill Finish | $50.75 | In stock |
| C6335001000125-96M | Cut Length: 96"; Finish: Mill Finish | $93.97 | In stock |
| C6335001000125-72M | Cut Length: 72"; Finish: Mill Finish | $73.19 | In stock |
| C6335001000125-144M | Cut Length: 144"; Finish: Mill Finish | $135.93 | In stock |
Aluminum U Channel 1-1/2" x 2" x 1/8" – Fits 1-1/4" – 6063-T5
- Height
- 2"
- Width
- 1-1/2"
- Fit
- 1-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6315002000125-48M | Cut Length: 48"; Finish: Mill Finish | $57.38 | In stock |
| C6315002000125-96M | Cut Length: 96"; Finish: Mill Finish | $106.26 | In stock |
| C6315002000125-144M | Cut Length: 144"; Finish: Mill Finish | $203.85 | In stock |
| C6315002000125-72M | Cut Length: 72"; Finish: Mill Finish | $88.16 | In stock |
Aluminum U Channel 1-3/4" x 1/2" x 1/8" – Fits 1-1/2" – 6063-T5
- Height
- 1/2"
- Width
- 1-3/4"
- Fit
- 1-1/2"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6317500500125-48M | Cut Length: 48"; Finish: Mill Finish | $27.01 | In stock |
| C6317500500125-96M | Cut Length: 96"; Finish: Mill Finish | $53.08 | In stock |
| C6317500500125-72M | Cut Length: 72"; Finish: Mill Finish | $40.11 | In stock |
| C6317500500125-144M | Cut Length: 144"; Finish: Mill Finish | $81.79 | In stock |
Aluminum U Channel 2" x 3" x 1/8" – Fits 1-3/4" – 6063-T5
- Height
- 3"
- Width
- 2"
- Fit
- 1-3/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6320003000125-48M | Cut Length: 48"; Finish: Mill Finish | $74.99 | In stock |
| C6320003000125-96M | Cut Length: 96"; Finish: Mill Finish | $138.87 | In stock |
| C6320003000125-72M | Cut Length: 72"; Finish: Mill Finish | $108.16 | In stock |
| C6320003000125-144M | Cut Length: 144"; Finish: Mill Finish | $200.87 | In stock |
Aluminum U Channel 2-1/2" x 1" x 1/8" – Fits 2-1/4" – 6063-T5
- Height
- 1"
- Width
- 2-1/2"
- Fit
- 2-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6325001000125-48M | Cut Length: 48"; Finish: Mill Finish | $45.92 | In stock |
| C6325001000125-96M | Cut Length: 96"; Finish: Mill Finish | $85.03 | In stock |
| C6325001000125-72M | Cut Length: 72"; Finish: Mill Finish | $73.42 | In stock |
| C6325001000125-144M | Cut Length: 144"; Finish: Mill Finish | $136.36 | In stock |
Aluminum U Channel 2-1/2" x 1-1/2" x 1/8" – Fits 2-1/4" – 6063-T5
- Height
- 1-1/2"
- Width
- 2-1/2"
- Fit
- 2-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6325001500125-48M | Cut Length: 48"; Finish: Mill Finish | $57.38 | In stock |
| C6325001500125-96M | Cut Length: 96"; Finish: Mill Finish | $106.26 | In stock |
| C6325001500125-72M | Cut Length: 72"; Finish: Mill Finish | $88.16 | In stock |
| C6325001500125-144M | Cut Length: 144"; Finish: Mill Finish | $203.85 | In stock |
Aluminum U Channel 2-1/2" x 2-1/2" x 1/8" – Fits 2-1/4" – 6063-T5
- Height
- 2-1/2"
- Width
- 2-1/2"
- Fit
- 2-1/4"
- Wall Thickness
- 1/8"
- Alloy & Temper
- 6063-T5
- Extrusion Manufacturing Compliance
- ASTM B221-14
- RoHS Compliance Standards
- RoHS 3 (2017/2102/EU) Compliant
- DFARS Compliance Standards
- Specialty Metals COTS-Exempt
- Hardness - Brinell
- 60 BHN
- Hardness - Rockwell (Scale E)
- 67
- Hardness - Webster
- ≥ 7
- Country of Origin
- United States of America
- materials
- Aluminium 95.1%
- materials
- Chromium 0-.1%
- materials
- Copper 0-0.1%
- materials
- Iron 0-0.7%
- materials
- Magnesium 0.45-.90%
- materials
- Manganese 0-0.10%
- materials
- Silicon 0.2-0.6%
- materials
- Titanium 0-0.1%
| SKU | Options | Price (each) | Availability |
|---|---|---|---|
| C6325002500125-48M | Cut Length: 48"; Finish: Mill Finish | $70.09 | In stock |
| C6325002500125-96M | Cut Length: 96"; Finish: Mill Finish | $129.80 | In stock |
| C6325002500125-72M | Cut Length: 72"; Finish: Mill Finish | $101.09 | In stock |
| C6325002500125-144M | Cut Length: 144"; Finish: Mill Finish | $187.74 | In stock |
Recently viewed
