Panel Cleat® Mustang Metal French Cleat – Panel Rail & Z-Clips – 6063-T5

Sku:

ZC638851-72MH

SKU:: ZC638851-72MH
UPC:
Alloy & Temper:: 6063-T5
Lift Off/Drop:: 3/4"
Offset/Projection:: 1/4"
Specification Met:: ASTM B221-14
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
Country of Origin:: United States of America
_finish:: Mill Finish

Panel Cleat® Mustang Metal French Cleat – Panel Rail & Z-Clips – 6063-T5 Product Information

The Mustang Panel Cleat® is a tall metal French cleat, extruded in aluminum, with a 3/4" engagement lip, the deepest of our 1/4"-offset cleats. The deeper hook keeps panels seated in demanding architectural and commercial installations.

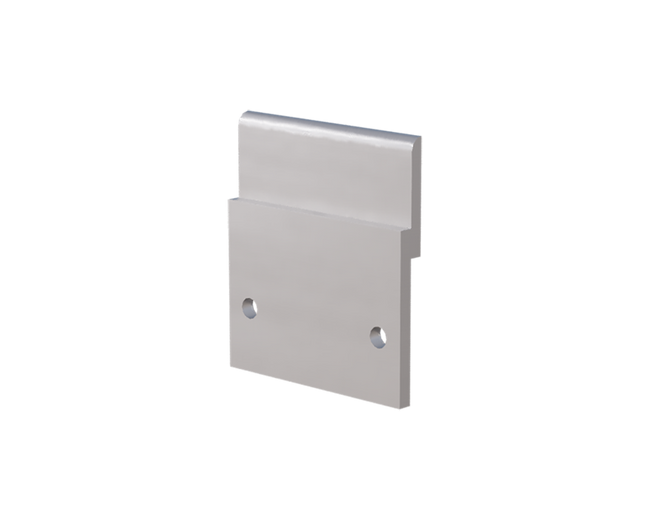

Use the continuous Panel Rail for full-length support or precut 2" Z-Clips for spot mounting. Both share one interlocking profile and can be combined on a single install. Fix one piece to the wall, its mate to the panel, and lower the panel on. Plan 3/4" of clearance above the panel to lift it on and off.

A 2-1/4" height and 1/8" wall give a wide fastening face for wall panels, millwork, retail fixtures and signage. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability
