Panel Cleat® Montavilla Aluminum Z Rail – Panel Rail – 6063-T5

Sku:

ZC637811-72MH

SKU:: ZC637811-72MH
UPC:
Width:: 15/32"
Height:: 2-5/8"
Wall Thickness:: 1/16"
Lift Off:: 1-1/2"
Offset:: 15/32"
Alloy & Temper:: 6063-T5
Specification Met:: ASTM B221-14
Country of Origin:: United States of America
Yield Strength:: 16k PSI-1
Hardness:: Brinell 55
RoHS:: RoHS 3 (2017/2102/EU) Compliant
REACH:: REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:: Specialty Metals COTS-Exempt
materials:: Aluminium 95.1%
logo:: pl-01.png
logo:: pl-02.png
logo:: pl-03.png
logo:: pl-04.png
logo:: pl-05.png
materials:: Chromium 0-.1%
materials:: Copper 0-0.1%
materials:: Iron 0-0.7%
materials:: Magnesium 0.45-.90%
materials:: Manganese 0-0.10%
materials:: Silicon 0.2-0.6%
materials:: Titanium 0-0.1%
materials:: Zinc 0-0.10%
materials:: Other 0.05-0.15%
_finish:: Mill Finish
_industry:: Wall Panel Systems & Modular Interiors,Cleanrooms & Controlled Environments,Retail Fixtures & Displays,Architectural Signage & Wayfinding,Industrial Enclosures & Electrical Panels

Cut Length: Required 72" 144"

Holes: Required Yes No

Finish: Required

Current Stock:

Volume Discount

1 - 29 $22.52
30 - 59 $ 21.39
60 - 89 $ 19.82
90 - 119 $ 19.14
120 - 149 $ 18.47
150 + Contact Us

15 Day Price Guarantee

Volume Discount

15 Day Price Guarantee

Qty:

Price/Piece:

$22.52

Panel Cleat® Montavilla Aluminum Z Rail – Panel Rail – 6063-T5 Product Information

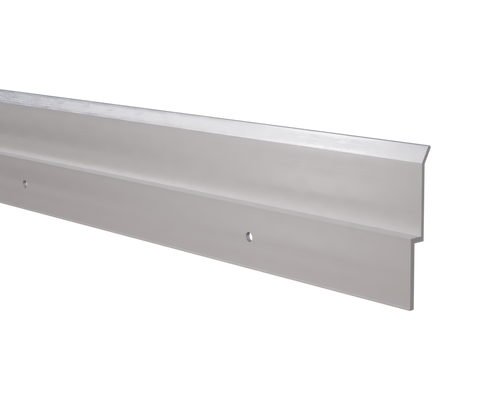

The Montavilla Panel Rail is an aluminum Z rail with the deepest hook in our cleat line: 1-1/2" of engagement on a 2-5/8" tall profile. Panels stay seated even when bumped, making it a fit for interior wall systems, display walls and modular partitions.

The 15/32" offset leaves room behind the panel for backers or uneven walls. Mount one length to the wall and its mate to the panel, allowing 1-1/2" of clearance above to set and remove it. Extruded from 6063-T5 aluminum in a mill finish.

Highlights

Continuous Mounting Support – Full-length channel provides even weight distribution and easy alignment
Clean Floating Look – Panels appear to hover, with no visible brackets or external fasteners
Strong and Secure – Reliable hold for wall cladding, signage, and architectural panels
Aluminum Durability – Built from corrosion-resistant aluminum for long-term indoor or light outdoor use
Great for Large Format Installs – Supports wide or tall panels needing consistent backing and stability
