Aluminum bypass track kits for sliding cabinet doors, display cases, and showcases. Choose the Locking or Economy Slide Track for 1/4" glass or acrylic, or the Millwork Slide Track for wood and acrylic panels from 3/16" to 3/4". Every part is also sold separately.
Free ShippingOn qualifying US orders of $250 or more. Some exclusions apply. Learn More.
Volume PricingSave money when you buy more. We offer competitive market pricing. Learn More.
Price MatchingShop with confidence with our 15-day price match guarantee. Learn More.
Sliding Door Track Kits
Each kit has the track and hardware for two bypass doors. Add your own panels.
Locking Slide Track Kit
Bypass track for 1/4" glass or acrylic with a keyed plunger lock. For display cases, showcases, and counters that need to lock.
| Panel | 1/4" Glass or Acrylic |
|---|---|
| Lock | Plunger Lock & Security Clip |
| Max Panel | 36" W × 48" H Each |
| Finish | Clear or Black Anodized |
What’s in the Kit
- (2) Locking Shoes
- (1) Deep Header
- (1) Security Base
- (1) Vinyl Shoe Insert
- (6) Steel Ball-Bearing Rollers
- (2) Deep Header Inserts
- (1) Plunger Lock & Security Clip Set
144" kit: 2 vinyl inserts, 12 rollers, and 2 lock sets.
| Complete KitLSTSBSET | View Options |
| Finger Pull End CapAdd-On Pull · LSTFPC | View Options |

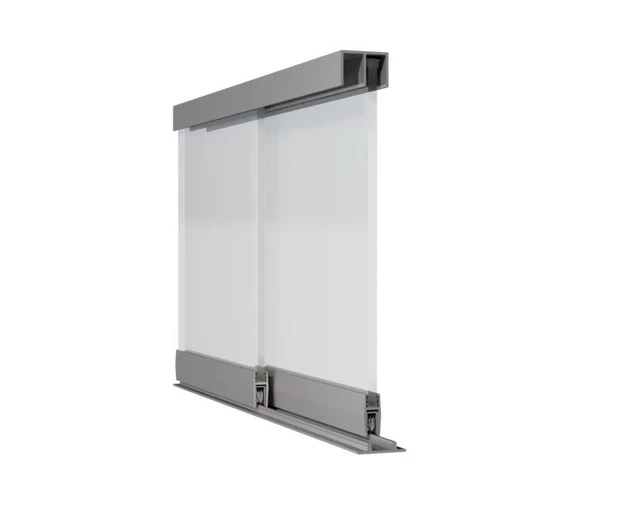

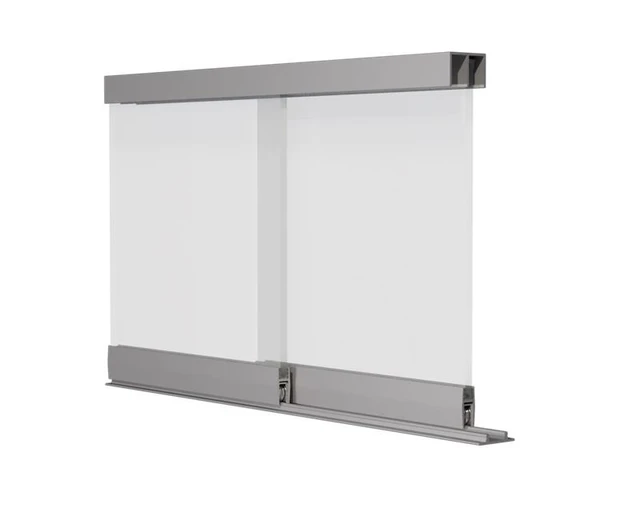

Economy Slide Track Kit
The same bypass layout for 1/4" glass or acrylic, without the lock. For display cases, cabinets, and enclosures.
| Panel | 1/4" Glass or Acrylic |
|---|---|
| Lock | None |
| Max Panel | 36" W × 48" H Each |
| Finish | Clear or Black Anodized |
What’s in the Kit
- (2) Economy Shoes
- (1) Header
- (1) Lower Track Base
- (1) Vinyl Shoe Insert
- (6) Steel Rollers
- (1) Door Guide 10-Pack
144" kit: 2 vinyl inserts, 12 rollers, and 2 door guide packs.
| Complete KitSTESET | View Options |
| Cap Pull TabAdd-On Pull · CPTH63 | View Options |
Millwork Slide Track Kit
Top and bottom bypass track for wood, MDF, or acrylic cabinet and closet doors.
| Panel | 3/16", 1/4", 1/2", or 3/4" |
|---|---|
| Lock | None |
| Material | Wood, MDF, or Acrylic |
| Finish | Mill, Clear, or Black Anodized |
What’s in the Kit
- (1) Top Track
- (1) Bottom Track
Sized to your panel thickness.
| Complete KitSTMSET | View Options |
| Wraparound Finger PullAdd-On Pull · WAP63250 | View Options |
Compare Slide Track Systems
All three are bypass tracks: two doors slide past each other in one opening.
| Locking Slide Track | Economy Slide Track | Millwork Slide Track | |
|---|---|---|---|
| Best For | Display Cases, Showcases, and Counters That Lock | Display Cases and Cabinets Without a Lock | Wood or Acrylic Cabinet and Closet Doors |
| Panel | 1/4" Glass or Acrylic | 1/4" Glass or Acrylic | 3/16", 1/4", 1/2", or 3/4" |
| Lock | Keyed Plunger Lock | None | None |
| Rollers | Ball-Bearing Rollers | Steel Rollers | None |
| Max Panel | 36" W × 48" H | 36" W × 48" H | Ask Us |
| Finishes | Clear or Black Anodized | Clear or Black Anodized | Mill, Clear, or Black Anodized |
Your Panel Thickness
1/4" glass or acrylic: Locking or Economy Slide Track. Wood, MDF, or acrylic from 3/16" to 3/4": Millwork Slide Track.
Locking Slide Track Parts
Every piece is sold separately for custom layouts, longer openings, and replacements.
Installation Guide
Locking Slide Track Installation Guide
Ten phases, from measuring the opening to dropping in the doors: cut the tracks and header insert, size and cut the panels, drill the lock hole in the shoe, install the tracks and security clip, and assemble the panels.
Tools: metal-cutting saw, tape measure, drill with 1/4" and countersink bits, and a screwdriver.
| Panel Width | (Opening Width ÷ 2) + (Overlap ÷ 2) |
|---|---|
| Overlap | 1" Minimum |
| Panel Height | Opening Height − 1-1/2" |
| Top Track | |
| View Options | |
| View Options | |
| Panel | |
| View Options | |
| View Options | |
| View Options | |
| Bottom Track | |
| View Options | |
| View Options | |
| Lock & Finishing | |
| View Options | |
| View Options | |
| View Options | |
Economy Slide Track Parts
Every piece is sold separately. Choose a low-profile, deep, or drop-in lower base.
| Top Track | |
| View Options | |
| View Options | |
| Panel | |
| View Options | |
| View Options | |
| View Options | |
| View Options | |
| Bottom Track | |
| View Options | |
| View Options | |
| View Options | |
| View Options | |
| View Options | |
Aluminum Sliding Door Tracks for Cabinets and Display Cases
Orange Aluminum’s sliding door tracks are extruded 6063-T5 aluminum bypass systems for display cases, showcases, retail fixtures, cabinets, closets, and custom millwork.
Sliding Door Track FAQ
Choosing a Track
Which sliding door track do I need?
Go by the panel. For 1/4" glass or acrylic, use the Locking or Economy Slide Track. For wood, MDF, or acrylic panels from 3/16" to 3/4", use the Millwork Slide Track sized to your panel thickness.
What is the difference between the Locking and Economy Slide Tracks?
Both are bypass tracks for 1/4" glass or acrylic with rollers in an aluminum shoe. The Locking Slide Track adds a keyed plunger lock, a deeper header, and ball-bearing rollers. The Economy Slide Track has no lock and costs less.
Which track works for a display case or showcase?
The Locking Slide Track, when the case holds anything worth securing. The Economy Slide Track works for unlocked cases. Both take 1/4" glass or acrylic panels up to 36" wide and 48" tall.
Kits and Parts
What comes in a sliding door track kit?
The 72" Locking Slide Track Kit has 2 shoes, a deep header, a security base, a vinyl insert, 6 ball-bearing rollers, 2 header inserts, and a lock set. The 72" Economy Slide Track Kit has 2 shoes, a header, a lower base, a vinyl insert, 6 steel rollers, and a 10-pack of door guides. The Millwork Slide Track Kit is a top and bottom track. Panels are not included.
How big can the doors be?
Locking and Economy Slide Tracks are rated for panels up to 36" wide and 48" tall each. For Millwork Slide Track sizing, contact us.
Installation
How do I install the Locking Slide Track?
Follow the Locking Slide Track Installation Guide (PDF): measure the opening, cut the tracks and panels, drill the lock hole in the shoe, install the tracks and security clip, then assemble the panels and drop them in.
How do I size glass panels for the Locking Slide Track?
Panel width = (opening width / 2) + (overlap / 2), with a 1" minimum overlap. Panel height = opening height minus 1-1/2" for installation clearance.
Cutting, Finishes, and Ordering
Can I cut the track to length?
Yes. Kits come in 72" and 144" lengths. Cut with a miter saw and a carbide-tipped blade rated for non-ferrous metal, then deburr the cut edge. Wear eye protection.
What finishes are available?
Locking and Economy Slide Tracks come in clear anodized or black anodized. The Millwork Slide Track comes in mill finish, clear anodized, or black anodized. Locks and end caps come in chrome or matte black.
Is there volume pricing?
Yes. Save money when you buy more. Open View Options to see the Volume Discount table for each length and finish. Learn more about volume pricing.
Can I get a custom sliding door track?
Yes. We offer custom aluminum profiles and extrusion services. Contact us to start a request.
